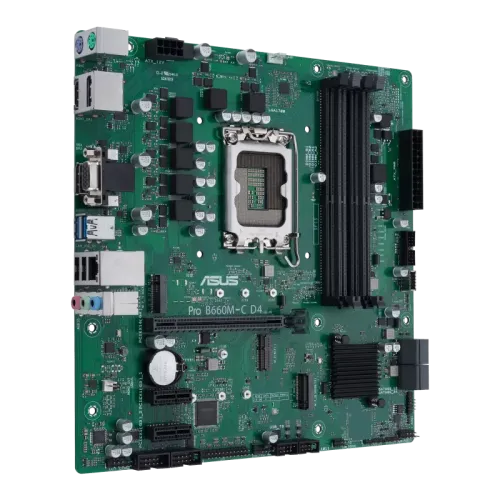

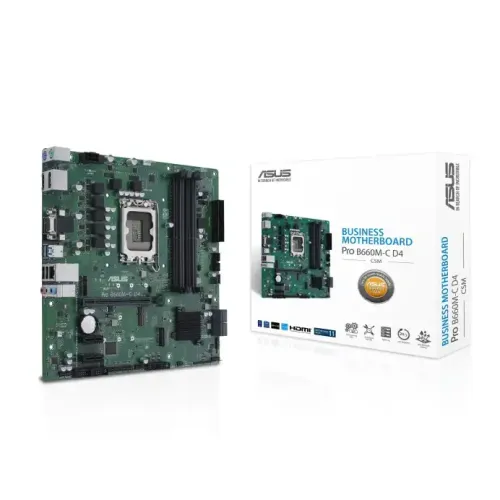

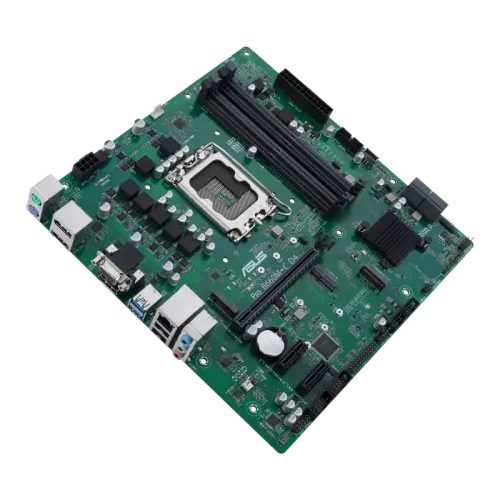

ASUS Pro B660M-C D4-CSM mATX Motherboard: Optimized for Business and IT Efficiency
The ASUS Pro B660M-C D4-CSM mATX Motherboard is designed for businesses seeking a reliable, feature-rich platform. Compatible with 14th, 13th, and 12th Gen Intel processors, this motherboard is ideal for IT operations, offering enhanced system protection, 24/7 stability, and easy management for seamless customization.
As part of ASUS’s Corporate Stable Model (CSM) program, the motherboard ensures up to 36 months of product lifecycle support and a 6-month end-of-life notice, helping organizations smoothly transition between products. Each CSM purchase includes ASUS Control Center Express, a server-grade IT management software that simplifies deployment, enhances productivity, and provides comprehensive control of IT systems.
ASUS Control Center Express enables fast IT deployment and efficient monitoring with user-friendly tools, optimizing your Total Cost of Ownership (TCO). Compatible with over 100 ASUS motherboards, it ensures a high-quality, business-optimized solution.
Built with enterprise-level reliability, the ASUS Pro B660M-C D4-CSM is certified by leading international safety and environmental organizations, providing a secure and sustainable computing platform. Its robust design and safety certifications make it a trusted choice for businesses, ensuring long-term stability.
The motherboard features ASUS Troubleshooting Solutions with a 10-1 pin debug header for faster diagnostics using ASUS Debug Cards, providing administrators with real-time error codes and faster recovery processes. This efficient troubleshooting solution enhances mass production workflows, saving time and costs.
With PCIe 4.0 support, dual M.2 slots, and DDR4 memory support, the ASUS Pro B660M-C D4-CSM delivers high-speed performance and reliability for modern business needs. This product has 3 years warranty.
What is the price of Asus Pro B660M-C D4-CSM Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of Asus Pro B660M-C D4-CSM Motherboard in Bangladesh is 16,900৳.
So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B660 Chipset
BIOS
128Mb Flash ROM
Form Factor
microATX
24.4cm x 24.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback ”
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
2 x PCIe 3.0 x1 slots
2 x DisplayPort**
1 x D-Sub port
1 x HDMI port
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
2 x DisplayPort
D-Sub (s)
1 x D-Sub
USB (s)
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)
1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
– Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio
3 x Audio jacks
Internal I/O Ports
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headersPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectorStorage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Others
Special Features
ASUS EZ DIY
– Box Headers
Bespoke Motherboard Design & Business Focused Features
– Q-LED Core
– ASUS Self Recovering BIOS
– ASUS Event Log
– ASUS Commercial BIOS kit
– Anti-Moisture
– 24/7 Reliability
– Overcurrent Protection
TPM IC onboard
Bundled Software
ASUS Exclusive Software
IT Management software supported
– ASUS Control Center Express(ACCE)
