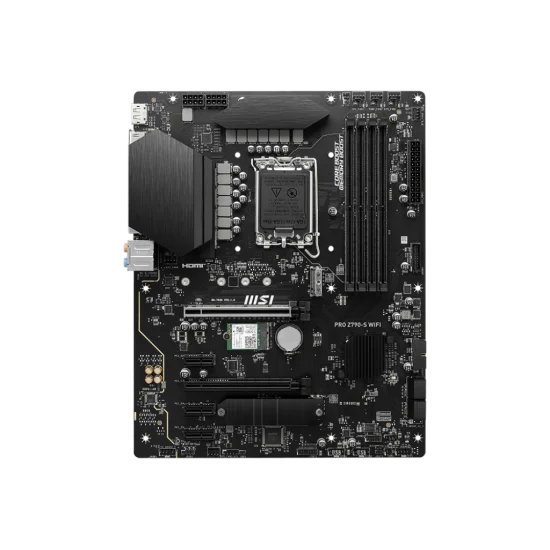

Enhance your business-level system with the MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard, designed to provide robust connectivity options and support powerful components. This motherboard, featuring an LGA 1700 socket, is compatible with Intel Core 12th, 13th, and 14th gen processors, offering superior performance with the Z790 chipset.
The motherboard supports up to 192GB of DDR5 memory across four dual-channel slots, accommodating modules up to 6600 MHz. This ensures enhanced multitasking and faster rendering speeds, perfect for demanding business applications. Store your important business assets with ease using four SATA and two M.2 SSD interfaces.
Expansive Connectivity and Networking
The MSI PRO Z790-S WIFI boasts diverse connectivity options including PCIe 5.0 x16, PCIe 3.0 x16, and three PCIe 3.0 x1 slots, allowing the installation of various graphics and utility cards. For peripherals, access USB 2.0, 3.2 Gen 1, and Gen 2×2 ports via the back panel and internal headers. Wireless device connectivity is seamless with Bluetooth 5.3 technology. The motherboard supports Wi-Fi 6E (802.11ax) and 2.5 GbE LAN, enabling fast downloads, cloud storage access, and media streaming.
Enhanced Power and Cooling Solutions
The 11-phase mirrored power arrangement ensures efficient power delivery, capable of handling high loads for optimal performance. The six-layer motherboard design supports high bandwidth for faster data transfer speeds. Extensive cooling solutions include extended and heavy-plated VRM heat sinks, M.2 Shield Frozr, chipset heat sink, and 7W/mK thermal padding with additional choke protection. Dedicated headers for CPU coolers, water-block coolers, and system fans ensure effective thermal management.
User-Friendly Design and Assembly
The MSI PRO Z790-S WIFI motherboard promotes easy assembly with features like a keep-out zone and XL PCIe clip, aiding in component installation. Double ESD protection and EZ debug LEDs support system setup and troubleshooting. The motherboard is Windows 11 Certified, guaranteeing compatibility with the latest operating system.
Advanced Data Transfer and Protection
MSI’s Lightning Gen 5 PCIe bandwidth supports up to 128 GB/s data transfer speeds, reinforced by Steel Armor covering to support large graphics cards. Additional protections include reinforced power connectors, stainless steel I/O panels, solidified grounding structure, OCP protection, and TVS technologies, safeguarding against electrical damage.
Key Features of MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard
Intel Z790 Chipset: Robust performance for Intel Core 12th, 13th, and 14th gen processors.
DDR5 Memory Support: Four slots supporting up to 192GB, optimized for overclocking.
Intel Wi-Fi 6E and 2.5Gbps LAN: High-speed wireless and wired connectivity.
Versatile Connectivity: Multiple USB ports, HDMI, DisplayPort, and PCI-E slots.
User-Friendly Internal I/O Ports: Easy customization with multiple power connectors, fan headers, and RGB LED connectors.
Robust Build Quality: ATX form factor for stability and reliability.
Optimize your business operations with the MSI PRO Z790-S WIFI LGA 1700 Motherboard, designed for high performance, extensive connectivity, and reliable operation.
The MSI PRO Z790-S WIFI LGA 1700 Motherboard is available in Bangladesh starting from 24,800 BDT. Please note that prices may vary based on customization and availability. For the latest pricing, visit our website or contact our showrooms.
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Socket
LGA 1700
MEMORY SPECIFICATION
Memory Type
DDR5
Memory Capacity
4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
NETWORK & WIRELESS
Wi-Fi
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
LAN
Realtek® RTL8125BG 2.5Gbps LAN
SUPPORTS
Supported CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
CONNECTORS
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
HDMI
1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Display Port
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
PORTS & SLOTS
Slots
2x PCI-E x16 slot
3x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Internal I/O Ports
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
PCI-E
2x PCI-E x16 slot
3x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
WARRANTY INFORMATION
Warranty
3 years
