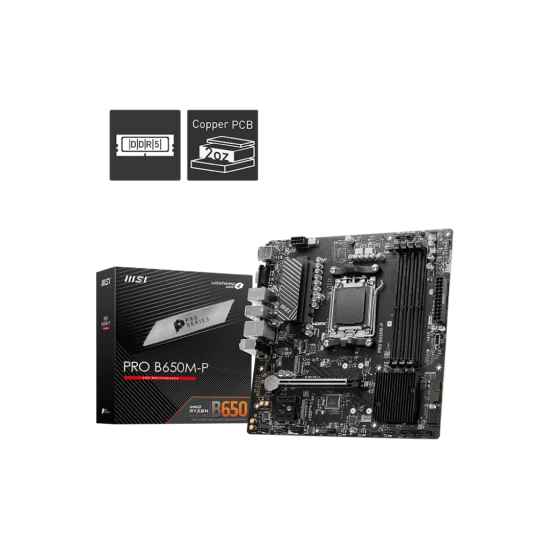

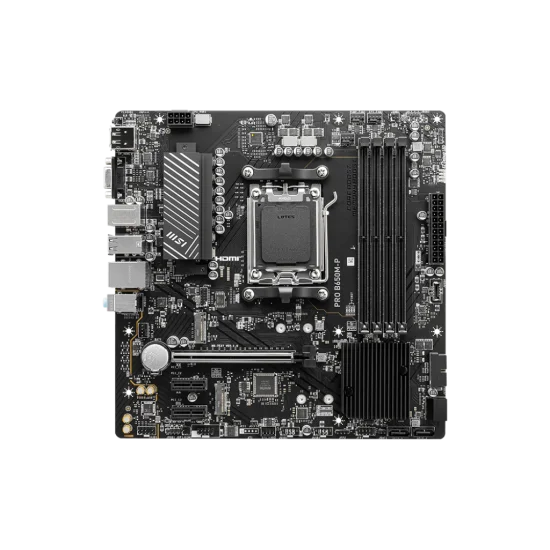

The MSI PRO B650M-P AM5 Micro-ATX Motherboard is designed to set the foundation for your next high-performance business PC build. Engineered to leverage the power of AMD’s Ryzen 7000 series processors, this robust motherboard enhances system performance, making it ideal for operating multiple programs with speed and reliability.
Key Features MSI PRO B650M-P AM5 Micro-ATX Motherboard:
Processor and Memory Support
Socket: AMD AM5, compatible with Ryzen 7000 series processors.
Memory: Four DDR5 RAM slots supporting up to 192GB, enhancing multitasking and rendering speeds.
Storage and Expansion
Storage: Four SATA III and two M.2 PCIe SSD interfaces for faster data transfer.
Expansion Slots: One PCIe 4.0 x16 and two PCIe 3.0 x1 slots for graphics and utility cards.
Connectivity
USB Ports: Multiple USB 2.0 ports for low-powered devices, and USB 3.2 Gen 1 and Gen 2 ports for high-speed data transfer.
Network: 2.5 Gigabit Ethernet port for fast and reliable network connectivity.
Display and Legacy Support
Video Outputs: HDMI and DisplayPort for processors with integrated graphics.
Legacy Connectors: VGA and PS/2 for older displays and peripherals.
Cooling Capabilities
Heat Sinks: M.2 Shield Frozr, heavy-plated VRM heat sink, 7W/mK thermal pad, and chipset heat sink to prevent thermal throttling.
Fan Control: Fully Fan Control software for automatic or manual fan operation.
User-Friendly Features
DIY Friendly
Installation Enhancements: Double ESD Protection, Keep Out Zone, EZ Debug LED, Windows 11 Certification, and Driver Utility Installer suite.
Performance
PCIe 4.0 Technology: Supports data transfer speeds up to 64 Gb/s for M.2 storage and graphics cards.
Memory Support: Dual-channel DDR5 RAM DIMM slots handle frequencies up to 6000 MHz with EXPO support for various memory brands.
Protection
Steel Armor PCIe Slot: Extra strength for heavier graphics cards with additional solder points and metal casing.
Double ESD Protection: Grounding layer around mounting holes to prevent static discharges.
Windows 11 Certification: Ensures a seamless and worry-free installation.
BIOS and Software
MSI Center
Software Utilities: Unified application for system modification and monitoring, including Hardware Monitoring, System Diagnosis, Fan Center, User Scenario, True Color, and Profile Setting.
Mystic Light: Control RGB lighting across your system and peripherals.
Click BIOS 5
Customization: Adjust motherboard parameters for performance, efficiency, and overclocking capabilities.
Resizable Bar Technology: Streamlines the connection between GPU and CPU for smoother performance, ideal for gaming and graphically intense programs.
Enhanced Audio
Audio Processor: High-quality HD audio processor with audio capacitors for clear sound.
Channel Isolation: Prevents distortion and crosstalk for clearer audio.
DE-POP Protection: Prevents loud popping sounds when plugging and unplugging headsets.
The MSI PRO B650M-P AM5 Micro-ATX Motherboard is a powerful and versatile choice for high-performance business builds. Its compatibility with AMD Ryzen 7000 series processors, support for DDR5 RAM, extensive connectivity options, robust cooling solutions, and user-friendly features make it an excellent foundation for your next desktop system. The additional features like enhanced audio, Mystic Light RGB control, and comprehensive BIOS and software utilities further enhance its value, ensuring a smooth and efficient computing experience.
What is the price of MSI PRO B650M-P AM5 Micro-ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest MSI PRO B650M-P AM5 Micro-ATX Motherboard Bangladesh is 15,600৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Socket
Socket AM5
MEMORY SPECIFICATION
Memory Type
DDR5
Memory Capacity
Up to 128GB
NETWORK & WIRELESS
Wi-Fi
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2
LAN
Realtek 8125BG 2.5G LAN
SUPPORTS
Supported CPU
Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Supported Memory
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5800+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
CONNECTORS
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
HDMI
1x HDMI
Display Port
1x DisplayPort
PORTS & SLOTS
Slots
4 DIMMs
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
PCI-E
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
WARRANTY INFORMATION
Warranty
3 year
