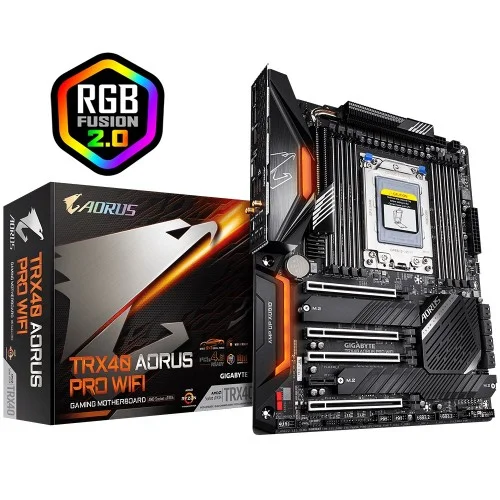

Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard
In stock
Short Description
- Model: Gigabyte TRX40 AORUS PRO
- Supports 3rd Gen AMD Ryzen Threadripper Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
- Advanced Thermal Design with Fins-Array Heatsink
- 3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard
The Gigabyte TRX40 AORUS PRO WIFI ATX sTRX4 Motherboard is designed to support 3rd Gen AMD Ryzen™ Threadripper™ processors, offering high-performance and future-proof technology for enthusiasts, overclockers, and professional gamers. It supports quad-channel ECC/Non-ECC Unbuffered DDR4 memory across 8 DIMM slots, ensuring robust performance for demanding tasks.
Featuring a 12+2 phase Infineon Digital VRM solution with 70A power stages and an advanced thermal design that includes a Fins-Array Heatsink and heatpipe, this motherboard delivers superior cooling and stable power delivery. It’s equipped with Intel GbE LAN with cFosSpeed Internet Accelerator and Intel WiFi 6 802.11ax with Bluetooth 5 for fast, reliable connectivity.
For ultra-fast storage, the Gigabyte TRX40 AORUS PRO WIFI comes with three PCIe 4.0 x4 M.2 slots, each featuring thermal guards to prevent overheating. The board also delivers immersive audio with 120dB SNR AMP-UP Audio, powered by ALC1220-VB and WIMA audio capacitors, for premium sound quality.
RGB enthusiasts will love the RGB Fusion 2.0 technology, which supports multi-zone addressable LED light strips and gives users control over onboard and external lighting. Smart Fan 5 technology offers multiple temperature sensors and hybrid fan headers with fan-stop functionality for optimal cooling.
Additional features include front and rear USB 3.2 Gen 2 Type-C headers for fast data transfer, and Q-Flash Plus, which allows you to update the BIOS without needing to install a CPU, memory, or graphics card. Therefore, with a full PCIe 4.0 design, this motherboard offers the performance and flexibility required by power users and extreme gaming enthusiasts.
Moreover, backed by a 3-year warranty, the Gigabyte TRX40 AORUS PRO WIFI combines cutting-edge performance with style and reliability.
What is the price of GIGABYTE TRX40 AORUS PRO Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | AMD Socket sTRX4: Support 3rd Generation AMD Ryzen Threadripper processors | |
| Chipset | AMD TRX40 | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS: X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 4.0 standard.) |
|
| M.2 Socket | 3 x M.2 Socket 3 connectors | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 8 x DDR4 DIMM sockets | |
| Supported Memory | – Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules – Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 256 GB | |
| Graphics | ||
| Graphics | Multi-Graphics Technology Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and3-Way/2-Way NVIDIA SLI technologies |
|
| Connector & Ports | ||
| USB (s) | CPU: 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Intel GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | 1 x front panel audio header Realtek ALC4050H codec+ ALC1220-VB codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | iTE I/O Controller Chip 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x GIGABYTE add-in card connector 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
