GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
In stock
Short Description
- Model: H510M S2H
- Supports 11th and 10th Gen Intel Core Processors
- Dual-Channel DDR4, 2 DIMMs
- Ultra-Fast M.2 with PCIe Gen3 X4
- 4 Display Interfaces Support
9,750৳ 11,000৳
In stock

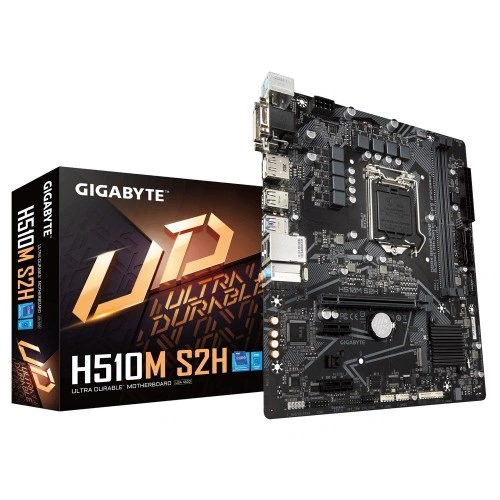

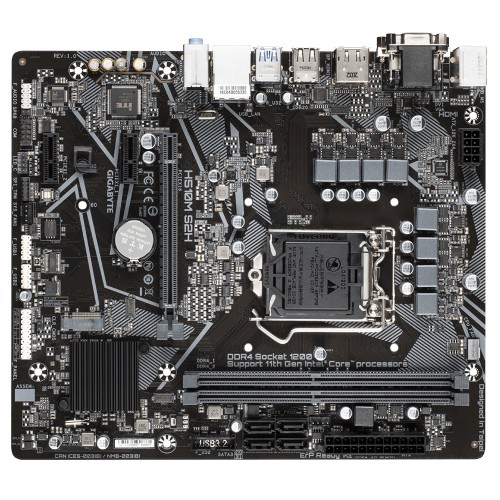

GIGABYTE H510M S2H Intel 10th and 11th Gen Micro ATX Motherboard
The GIGABYTE H510M S2H Motherboard is designed for optimal performance and compatibility with both 10th and 11th Gen Intel Core Series Processors. Featuring Dual Channel Non-ECC Unbuffered DDR4 memory support with two DIMM slots, this motherboard allows for enhanced memory configurations and efficiency.
High-Speed Storage and Networking
Equipped with an Ultra-Fast M.2 slot that supports PCIe Gen3 x4 and SATA interface, the H510M S2H ensures rapid data transfer, enhancing overall system responsiveness. This motherboard also features GIGABYTE’s exclusive 8118 Gaming LAN, which includes Bandwidth Management for optimal network performance. The Realtek 8118 LAN chip provides automatic bandwidth allocation, ensuring your games and applications receive the highest network priority for seamless online experiences.
Superior Audio Quality
The H510M S2H is built with high-end audio capacitors that deliver high-resolution and high-fidelity audio, creating immersive sound experiences for gamers. Additionally, the Audio Noise Guard feature effectively separates the board’s sensitive analog audio components from potential noise pollution at the PCB level, enhancing audio clarity and quality.
Advanced Cooling Technology
With Smart Fan 6 technology, the motherboard incorporates multiple temperature sensors and hybrid fan headers with a FAN STOP feature. This allows users to maintain optimal cooling performance while keeping the system quiet. Each fan header supports both PWM and DC fans, as well as water cooling pumps, with over-current protection up to 24W (12V x 2A). Fans can be set to stop completely below a user-specified temperature, ensuring efficient cooling.
User-Friendly Interface and Durability
The GIGABYTE APP Center serves as a convenient portal for all motherboard utilities and drivers, allowing users to easily install updates. Enhanced with an Anti-Sulfur Design, the H510M S2H motherboard promises durability and long-lasting performance. Plus, it comes with a 3-year warranty, highlighting GIGABYTE’s commitment to quality and support.
In summary, the GIGABYTE H510M S2H Micro ATX Motherboard offers an exceptional blend of performance, connectivity, and user-friendly features, making it an excellent choice for building a powerful PC system.
What is the price of GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE H510M S2H Intel 10th and11th Gen Micro ATX Motherboard in Bangladesh is 9,800৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. |
|
| Chipset | Intel H510 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz | |
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
