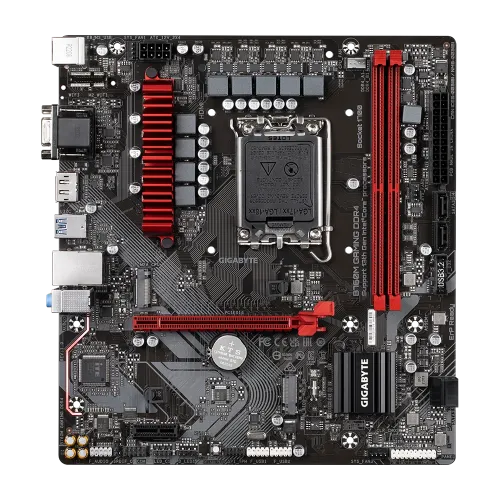

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard - Image 2
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard - Image 3
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard - Image 4
GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard
, , , , , ,

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B760M GAMING DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

19,400৳  20,680৳

In stock

EMI starts at 716৳  - View Banks EMI Plans

GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard

The GIGABYTE B760M GAMING DDR4 Micro ATX motherboard is designed to support Intel’s 14th, 13th, and 12th Gen processors through the LGA1700 socket, making it a versatile option for gamers, creators, and PC enthusiasts. Offering robust performance, this motherboard supports up to 64GB of DDR4 RAM across two DIMM slots, with overclocking speeds reaching up to 5333 MHz, delivering fast multitasking and smoother gameplay.

Engineered with a Hybrid 6+2+1 Phases Digital VRM solution, the GIGABYTE B760M GAMING ensures stable and efficient power delivery, providing reliable performance for demanding tasks.

In terms of connectivity, this motherboard is equipped with Realtek’s 2.5GbE LAN chip, delivering high-speed network connections up to 2.5 Gbps, ideal for gaming and streaming.

The PCIe 4.0×16 slot comes with EZ-Latch technology, making it easier to install or upgrade your GPU without the hassle. Additional connectivity options include a rear USB-C 5Gb/s port, along with HDMI, DisplayPort, and D-Sub outputs for versatile display and peripheral connections.

The GIGABYTE B760M GAMING DDR4 also features Smart Fan 6 technology, offering advanced cooling with multiple temperature sensors and hybrid fan headers, along with the FAN STOP function for quieter operation. Plus, the Q-Flash Plus feature simplifies BIOS updates without needing to install the CPU, memory, or GPU, ensuring hassle-free system maintenance.

Key Features:

  • Supports Intel 14th, 13th, and 12th Gen processors (LGA1700)
  • Dual-channel DDR4 memory up to 64GB with 5333 MHz overclocking
  • Hybrid 6+2+1 Phases Digital VRM solution for stable power delivery
  • 2 PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs
  • EZ-Latch PCIe 4.0 x16 slot for easy GPU installation
  • Realtek 2.5GbE LAN for fast, reliable networking
  • USB-C 5Gb/s, HDMI, DisplayPort, and D-Sub outputs
  • Smart Fan 6 with FAN STOP for efficient cooling
  • Q-Flash Plus for easy BIOS updates without CPU or GPU installation

The GIGABYTE B760M GAMING DDR4 motherboard is ideal for gamers and power users seeking high performance, next-gen connectivity, and easy upgrade options.

What is the price of GIGABYTE B760M DDR4 Micro ATX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B760M GAMING DDR4 Micro ATX Motherboard in Bangladesh is 19,200৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-intel-0028 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR4
Slots 2
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Maximum Memory supporting up to 64 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Connector & Ports
HDMI 1x HDMI
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip headers
1 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumperBack Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
1 x DisplayPort
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years Warranty
