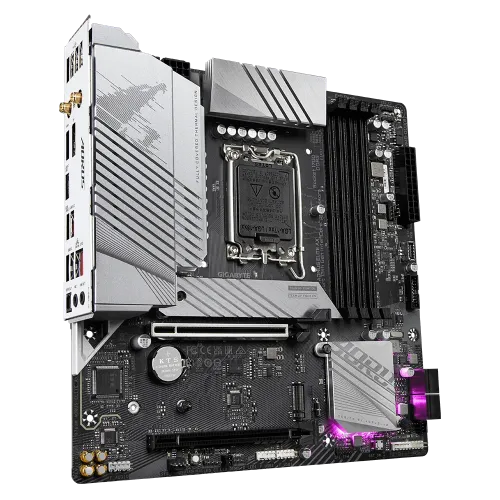

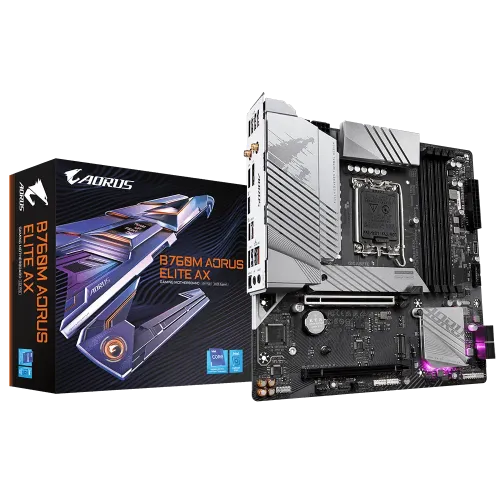

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
In stock
Short Description
- Model: B760M AORUS ELITE AX DDR5
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 128GB 7600(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
25,900৳ 29,150৳
In stock
GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
The GIGABYTE B760M AORUS ELITE AX DDR5 motherboard is built for power users, gamers, and PC enthusiasts. Designed to support Intel’s 14th, 13th, and 12th Gen processors, this micro ATX motherboard delivers exceptional performance with its Twin 12+1+1 Phases Digital VRM Solution. It also supports dual-channel DDR5 memory with 4 SMD DIMMs and XMP 3.0 compatibility for superior memory speeds.
The motherboard offers two PCIe 4.0 x4 M.2 slots, providing fast, next-gen storage solutions. Coupled with the M.2 Thermal Guard, it ensures stable power delivery and optimal SSD performance under load. The EZ-Latch Plus feature makes installing and swapping out M.2 SSDs quick and hassle-free, with a screwless connection design.
For superior connectivity, the GIGABYTE AORUS ELITE AX DDR5 features 2.5GbE LAN and Intel Wi-Fi 6E (802.11ax), ensuring fast and reliable network speeds. It also includes front USB-C 10Gb/s and rear USB-C 20Gb/s ports for versatile data transfer, as well as DisplayPort (DP) and HDMI outputs for flexible monitor setup.
The Smart Fan 6 system integrates multiple temperature sensors and hybrid fan headers, allowing users to keep their system cool with FAN STOP technology. Additionally, the Q-Flash Plus feature enables BIOS updates without needing to install the CPU, RAM, or GPU, making maintenance easier than ever.
Experience advanced technology and seamless performance with the GIGABYTE B760M AORUS ELITE AX DDR5 motherboard, perfect for building a future-proof system.
What is the price of GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard in Bangladesh is 26,000৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Based on 0 reviews
Be the first to review “GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard”
