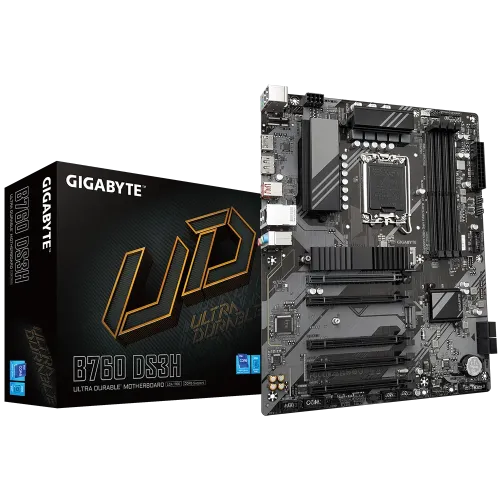

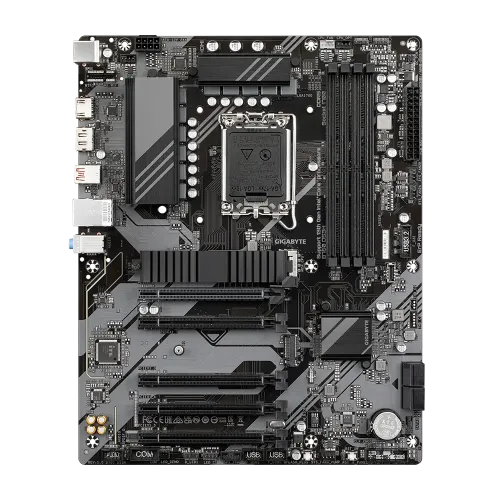

GIGABYTE B760 DS3H ATX Motherboard
GIGABYTE B760 DS3H ATX Motherboard - Image 2
GIGABYTE B760 DS3H ATX Motherboard - Image 3
GIGABYTE B760 DS3H ATX Motherboard - Image 4
GIGABYTE B760 DS3H ATX Motherboard
, , , , , ,

GIGABYTE B760 DS3H ATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B760 DS3H
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: GbE LAN

18,900৳  20,510৳

In stock

EMI starts at 698৳  - View Banks EMI Plans

GIGABYTE B760 DS3H ATX Motherboard

The GIGABYTE B760 DS3H ATX motherboard is engineered for Intel’s Socket LGA 1700, offering comprehensive support for 14th, 13th, and 12th Gen processors, making it an excellent choice for gaming, content creation, and multitasking. With a powerful Hybrid 6+2+1 Phases Digital VRM Solution, this motherboard ensures efficient power delivery and superior system stability, even under heavy loads.

Designed for enhanced memory performance, the GIGABYTE B760 DS3H features Dual Channel DDR5 memory support across 4 DIMM slots, with compatibility for XMP Memory Modules to provide faster and more efficient multitasking. For those requiring high-speed storage, the board comes equipped with two PCIe 4.0 x4 M.2 connectors, allowing for ultra-fast data transfer rates. The included M.2 Thermal Guard ensures optimal SSD performance by preventing overheating during intense workloads.

Connectivity is a major focus of the GIGABYTE B760 DS3H. The motherboard features an EZ-Latch PCIe 4.0 x16 slot with a quick-release design, making GPU installation or upgrades easier than ever. For high-speed networking, the 2.5GbE LAN ensures fast, reliable connections, ideal for gaming and data-heavy applications. The rear panel also offers versatile connectivity options, including a USB-C 10Gb/s port, DisplayPort (DP), and HDMI, allowing for seamless connection with multiple devices and displays.

Cooling efficiency is enhanced by Smart Fan 6 technology, which utilizes multiple temperature sensors and hybrid fan headers with the FAN STOP feature, ensuring quiet and efficient operation. Additionally, the Q-Flash Plus feature simplifies BIOS updates, enabling upgrades without the need to install the CPU, memory, or graphics card.

Key Features:

  • Supports Intel 14th, 13th, and 12th Gen processors (LGA1700)
  • Dual Channel DDR5 with 4 DIMMs and XMP Memory support
  • Hybrid 6+2+1 Phases Digital VRM for stable power delivery
  • 2 PCIe 4.0 x4 M.2 connectors with M.2 Thermal Guard for fast storage
  • EZ-Latch PCIe 4.0 x16 slot for easy GPU installation
  • 2.5GbE LAN for fast, reliable networking
  • USB-C 10Gb/s, DisplayPort, and HDMI for versatile connectivity
  • Smart Fan 6 with FAN STOP for advanced cooling control
  • Q-Flash Plus for easy BIOS updates without CPU, memory, or GPU installation

The GIGABYTE B760 DS3H ATX motherboard delivers powerful performance, high-speed connectivity, and efficient cooling, making it a perfect choice for gamers, creators, and professionals seeking reliability and versatility.

What is the price of GIGABYTE B760 DS3H ATX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B760 DS3H ATX Motherboard in Bangladesh is 19,500৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-intel-0029 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
(PCIEX1_1, PCIEX1_3~PCIEX1_5)
Memory
Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumpe
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years
