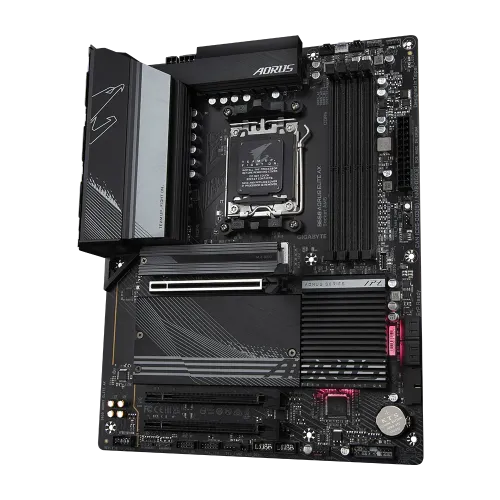

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard - Image 2
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard - Image 3
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard - Image 4
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard - Image 5
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard - Image 6
GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard
, , , , , ,

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B650 AORUS ELITE AX
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 6666(OC)
  • Graphics Output: 1x Display Port, 1 x HDMI
  • Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E

33,500৳  36,350৳

In stock

EMI starts at 1,236৳  - View Banks EMI Plans

GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard

The GIGABYTE B650 AORUS ELITE AX Motherboard is designed for optimal performance, supporting AMD Ryzen 8000 and 7000-series processors through its AM5 socket. This cutting-edge motherboard features a 12+2+1 phase digital VRM solution, providing unparalleled power delivery and stability for demanding gaming and professional applications.

Enhanced Thermal Management

Equipped with advanced thermal heatsinks, the B650 AORUS ELITE AX ensures efficient airflow and heat exchange, enhancing overall thermal performance. The M.2 Thermal Guard technology prevents throttling and bottlenecks in high-speed M.2 SSDs by effectively dissipating heat, ensuring sustained performance during intense gaming sessions.

High-Speed Storage and Connectivity

This motherboard includes two PCIe 4.0 x4 M.2 connectors, enabling rapid data access and transfer rates. The innovative 2X copper PCB design improves thermal conductivity and lowers component temperatures, contributing to a stable and efficient system.

Intelligent Cooling Solutions

The Smart Fan 6 technology optimizes cooling with various unique features, including support for PWM and DC fans as well as a water cooling pump. Each fan header can handle up to 24W (12V x 2A) with over-current protection, ensuring that your gaming rig remains cool and quiet under load.

Superior Networking Capabilities

The GIGABYTE B650 AORUS ELITE AX is equipped with 2.5G LAN, providing up to 2.5 GbE network connectivity—at least twice the speed of standard 1GbE networking. It also supports Multi-Gig RJ-45 Ethernet (10/100/1000/2500 Mbps) for reliable online gaming and streaming. Additionally, USB 3.2 Gen 2 ports deliver lightning-fast data transfer speeds of up to 10Gbps.

With double the bandwidth compared to its predecessor, the GIGABYTE AORUS ELITE AX Motherboard offers an impressive three-year warranty, making it an exceptional choice for gamers and content creators seeking high-performance computing.

What is the price of GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B650 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard in Bangladesh is 33,500৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-mboard-0031 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Graphics
Graphics Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB (s) CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years
