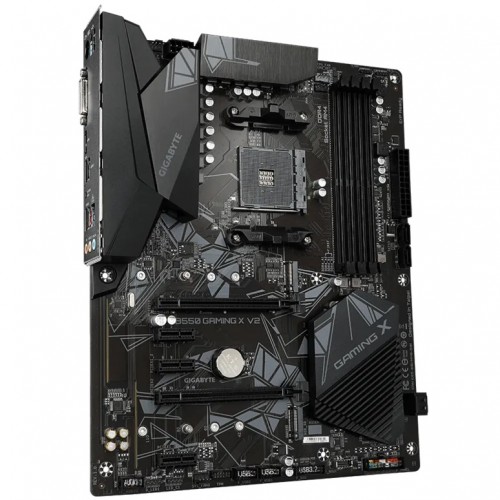

GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard
GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard - Image 2
GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard - Image 3
GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard - Image 4
GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard
, , , , , ,

GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B550 GAMING X V2
  • Ryzen 5000 Series/ 3rd Gen & 3rd Gen with Radeon Graphics Processors
  • GIGABYTE Exclusive 8118 Gaming LAN
  • 10+3 Phases Pure Digital VRM
  • Ultra-Fast NVMe PCIe Slots

GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard

The GIGABYTE B550 GAMING X V2 AM4 ATX Motherboard is designed to maximize performance with AMD StoreMI technology, combining the speed of SSDs with the large capacity of HDDs for faster boot times and improved user experience. StoreMI accelerates data performance, transforming your PC into a high-performance system.

Features:

High Performance and Power Delivery
Equipped with a 10+3 phase pure digital PWM and Low RDS(on) MOSFETs, this motherboard delivers precise power to support 3rd Gen AMD Ryzen CPUs. This design ensures enhanced system performance and scalability for demanding tasks and gaming.

Ultra-Fast Connectivity
The B550 GAMING X V2 supports NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, providing blazing-fast data transfer speeds of up to 64 Gb/s. These M.2 connectors are perfect for NVMe and SATA mode SSDs and also support RAID configurations, making them ideal for high-performance storage solutions.

Realtek 8118 Gaming LAN
With the Realtek 8118 LAN chip, gamers can enjoy automatic bandwidth allocation, ensuring high network priority for games and applications. This feature guarantees a seamless and smooth online gaming experience with faster Internet speeds.

Stunning Visuals with HDMI 2.1
The motherboard features HDMI 2.1, which supports 4K at 60Hz, Full HDR, and 21:9 cinematic ratio for the ultimate visual experience. With HDCP 2.3 compatibility, it delivers high-quality video streaming and multi-stream transfers.

Additional Features:

RGB Fusion 2.0 Lighting
Customize your gaming rig with RGB Fusion 2.0, which offers control over onboard and external Addressable LED strips. With an easy-to-use interface, users can personalize lighting effects, synchronize them with other components, and enhance gaming immersion with interactive effects.

Premium Audio
The motherboard includes high-end audio capacitors for rich, high-fidelity sound and an audio noise guard to reduce interference, providing a superior audio experience.

Ultra Durable Design
With GIGABYTE Q-Flash Plus, you can update the BIOS without installing the CPU, memory, or graphics card, making the update process simple and efficient.

What is the price of  GIGABYTE B550 GAMING X V2 AM4 Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd.  So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Gigabyte-AMD-Motherboard-0003 Categories: , , , , , , Tags: , , , ,
Basic Information
Supported CPU AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type DDR4
Slots 4 x DIMM slots
Supported Memory AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz
USB (s) Chipset:
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek Audio CODEC
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 Years
