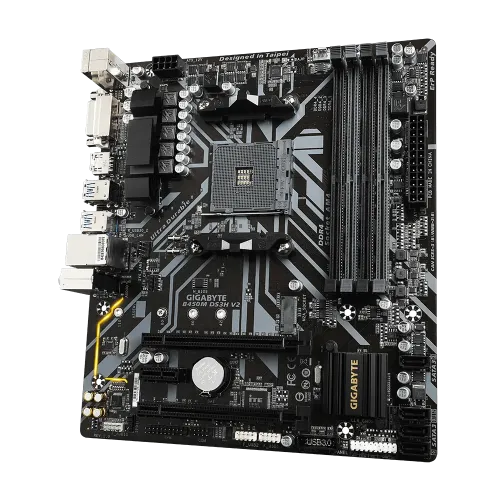

Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard
In stock
Short Description
- Model: B450M DS3H V2
- Supported CPU: Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen Processors for Socket AM5
- Supported RAM: 4 x DDR4, up to 128GB, 3600(O.C.)
- Graphics Output: 1 x DVI-D port, 1 x HDMI port
- Features: 1 x M.2 Slot, Realtek GbE LAN
10,600৳ 12,040৳
In stock
Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard
The Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard is a versatile and powerful option for users seeking top performance and compatibility with a range of AMD processors. This motherboard supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, 3rd Gen Ryzen™, 2nd Gen Ryzen™, 1st Gen Ryzen™, as well as Ryzen™ and Athlon™ processors with Radeon™ Vega Graphics, providing a flexible foundation for various PC builds. The B450 chipset ensures optimal performance with the AM4 CPU socket, making it compatible with multiple Ryzen generations.
Product Features
The motherboard features four dual-channel DIMM slots, allowing for faster multitasking by supporting up to 64GB of DDR4 memory. It also includes four SATA III ports and one M.2 PCIe connector, offering high-speed storage options and increased capacity. With a PCIe x16 slot for graphics cards and additional PCIe x4 and x1 slots for utility cards, this motherboard provides ample expansion possibilities.
The 4+2 phase digital VRM design, enhanced with Low RDS(on) MOSFETs and digital PWM components, ensures stable voltage regulation, improving transient response and overall system performance. The motherboard’s glass fabric PCB offers protection against moisture, while its anti-sulfur resistors guard against corrosion and ensure long-term reliability. The solid pin connectors provide strong and reliable electrical connections, further boosting durability. Additionally, the CEC 2019 certification meets California Energy Commission standards for energy efficiency.
For gaming and streaming enthusiasts, the 8118 Gaming LAN ensures fast, lag-free network speeds. The Hi-Fi Audio system, equipped with Audio Noise Guard and LED trace lighting, delivers immersive, high-quality sound for an enhanced gaming and media experience.
The Smart Fan 5 technology offers advanced cooling control, utilizing five temperature sensors and three hybrid fan headers to maintain optimal performance. Fans can automatically shut down when temperatures drop, extending their lifespan and ensuring quiet operation.
What is the price of Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard in Bangladesh is 10,800৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Audio | Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Dual channel memory architecture Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| DVI-D (s) | 1 x DVI-D port | |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors |
|
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
