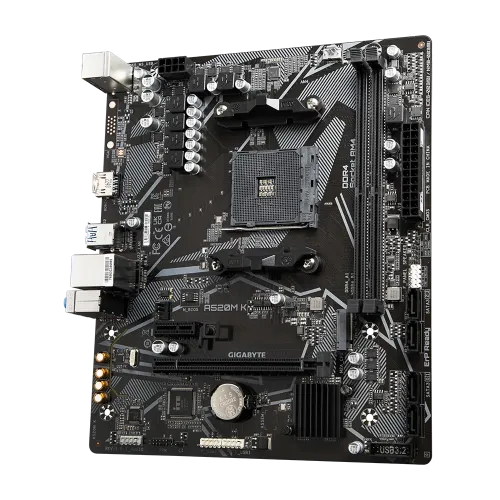

The GIGABYTE A520M K AM4 Micro ATX Motherboard is a compact yet powerful solution for users seeking reliable performance. Designed for the AM4 socket, this motherboard is compatible with a wide range of AMD processors, including the Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series, making it a versatile option for various computing needs.
This motherboard supports dual-channel DDR4 memory with two DIMM slots, offering excellent memory performance for tasks like gaming, content creation, and multitasking. Whether you choose ECC or non-ECC unbuffered memory, the GIGABYTE A520M K AM4 ensures stability and efficiency.
For storage, the PCIe Gen3 x4 M.2 slot provides compatibility with PCIe NVMe and SATA modes. Delivering high-speed data transfer and reducing load times, which is essential for faster system responsiveness.
Networking is optimized with the GbE LAN port, which includes bandwidth management to prioritize network performance. Ensuring smooth online gaming, streaming, and other network-intensive activities. The 8-channel HD audio with high-quality audio capacitors delivers immersive and crystal-clear sound, perfect for gaming and media consumption.
The Smart Fan 5 technology enhances system cooling with multiple temperature sensors and hybrid fan headers. The FAN STOP feature minimizes noise and improves energy efficiency by stopping the fans under low-load conditions. This dynamic cooling solution ensures optimal thermal performance.
The GIGABYTE APP Center provides a user-friendly interface for managing system settings, BIOS updates, and driver installations, making system management easy.
With its Ultra Durable design, 3-year warranty, and powerful features, the GIGABYTE A520M K AM4 is the ideal motherboard for users looking for performance, stability, and easy management in a micro ATX form factor.
What is the price of GIGABYTE A520M K AM4 Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of GIGABYTE A520M K AM4 Motherboard in Bangladesh is 8,900৳.
So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Chipset
AMD A520
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
Micro ATX Form Factor; 23.3cm x 19.8cm
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory
16 GB
Connector & Ports
HDMI
1 x HDMI port
USB (s)
CPU:
4 x USB 3.2 Gen 1 ports on the back panelChipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
RAID
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion headerBack Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 port
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty
03-Year Warranty
