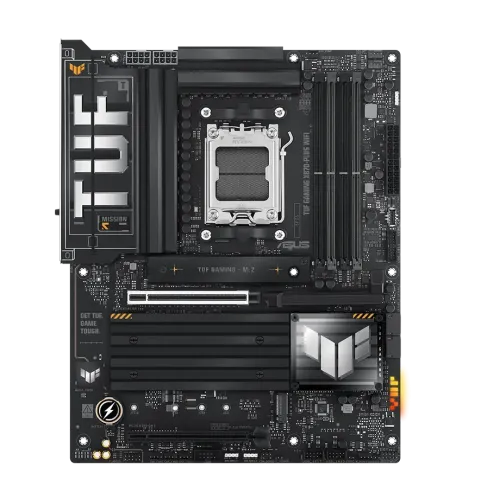

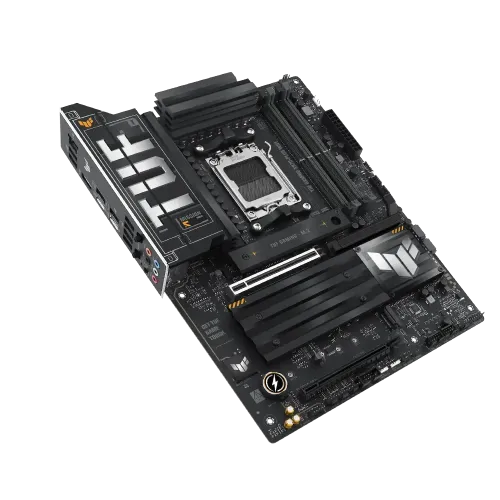

Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard - Image 2
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard - Image 3
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard - Image 4
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard - Image 5
Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard
, , , , , ,

Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: TUF GAMING X870-PLUS WIFI
  • Supported CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Processors
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5
  • Graphics Output: 1 x HDMI, 2 x USB4 (40Gbps)
  • Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4

Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard: Built for Performance and Durability

The Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard is designed for gamers and PC builders seeking high-performance and reliability. Compatible with AMD Ryzen 9000, 8000, and 7000 series processors, it boasts the AMD X870 chipset and AM5 socket, delivering exceptional power and speed for modern gaming and computing tasks.

Key Features

With support for up to 192GB of DDR5 RAM and speeds over 8000+ MT/s (OC), this motherboard ensures seamless multitasking and lightning-fast responsiveness, making it perfect for intensive gaming and demanding applications. Storage is plentiful, with four M.2 slots and two SATA 6Gb/s ports, offering extensive capacity for fast and secure data storage.

Connectivity is a key feature of the Asus TUF GAMING X870-PLUS, with dual USB4 40Gbps Type-C ports, WiFi 7, and PCIe 5.0 slots for ultra-fast data transfer and device compatibility. Advanced cooling solutions like VRM heatsinks, M.2 heatsinks, and multiple fan headers maintain optimal performance under heavy loads, keeping your system cool during intense gaming sessions.

For expansion, this motherboard includes a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot, providing flexibility for future upgrades. It also supports 4K@60Hz via HDMI 2.1 and DisplayPort 1.4a, ensuring breathtaking visuals for an immersive gaming experience.

Personalization is easy with Aura Sync RGB lighting, allowing you to customize your build with dynamic color effects.

Featuring AI overclocking, AI cooling, and AI networking, the Asus TUF GAMING X870-PLUS ensures your system runs at peak efficiency with minimal effort. Backed by a 3-year warranty, it is the perfect foundation for any high-performance PC.

What is the price of  Asus TUF GAMING X870-PLUS WiFi Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Amd-Motherboard-0020 Categories: , , , , , , Tags: ,
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
Chipset AMD X870 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback
Expansion Slots
PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** Specifications vary by CPU types.
**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
M.2 Socket Total Supports 4 x M.2 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 192GB
Graphics
Graphics 1 x HDMI port
2 x USB4 (40Gbps) ports support USB Type-C display outputs
Connector & Ports
HDMI 1x HDMI
USB (s) Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4
Supported Storage Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5
Audio 5 x Audio jacks
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Others
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with SPS)
– ESD Guards
– TUF LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
– Support: up to 30W fast charging and USB Wattage Watcher
– Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
– Compatible with PD3.0
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Warranty Information
Manufacturing Warranty 3 Years
