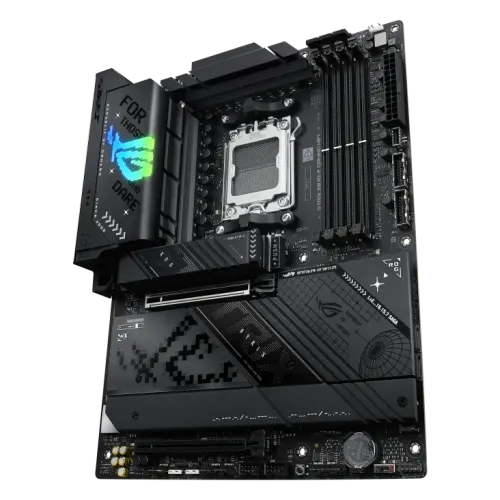

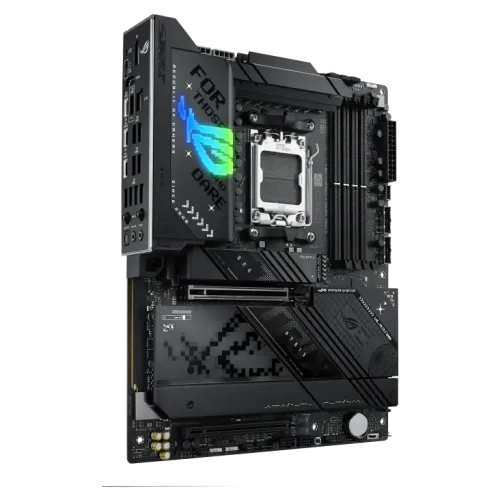

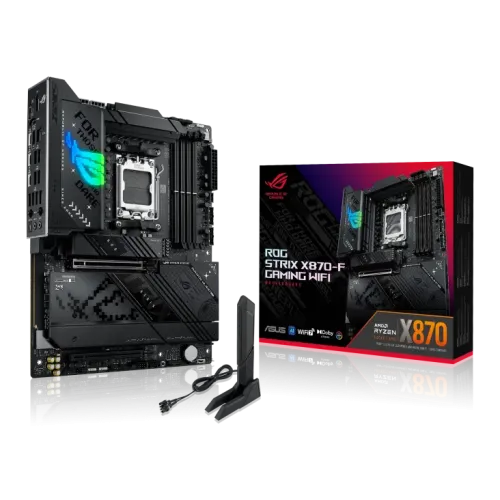

Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard - Image 2
Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard - Image 3
Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard - Image 4
Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
, , , , , ,

Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: ROG STRIX X870E-F GAMING WIFI
  • Supported CPU: AMD Socket AM5 for AMD Ryzen 9000/8000 & 7000 Series Processors
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5
  • Graphics Output: 1 x DisplayPort, 1 x HDMI port, 2x USB4 (up to 40Gbps transfer rate)
  • Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth V5.4

Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard: Ultimate Gaming Powerhouse

The Asus ROG STRIX X870E-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard is engineered for serious gamers and PC enthusiasts, offering top-tier performance with AMD Ryzen™ 8000 and 7000 series processors. Featuring the AMD X870 chipset and AM5 socket, it ensures seamless compatibility and future-ready performance.

Key Features of Asus ROG STRIX X870E-F GAMING WIFI DDR5

This motherboard boasts a powerful 16+2 power stage design, delivering stable power for heavy loads and effortless overclocking. With support for up to 128GB of DDR5 RAM, it provides the speed and capacity needed for intense gaming, multitasking, and content creation. The four M.2 slots with integrated heatsinks and two SATA 6Gb/s ports offer fast and extensive storage for all your games and applications.

Seamless connectivity is a standout feature, with dual USB4 Type-C ports, WiFi 6E, and PCIe 5.0 slots, ensuring ultra-fast data transfers, smooth online gaming, and easy peripheral expansion. Advanced cooling solutions, including VRM heatsinks, M.2 heatsinks, and multiple fan headers, keep your system running cool even during the most demanding gaming sessions.

Visuals come alive with 4K@60Hz output via HDMI and DisplayPort, delivering immersive, crystal-clear graphics for an enhanced gaming experience. The customizable Aura Sync RGB lighting allows you to personalize your build with vibrant colors and dynamic effects, making your rig uniquely yours.

With built-in AI overclocking, AI cooling, and AI networking, the Asus ROG STRIX X870E-F ensures peak system performance with minimal effort, making it ideal for competitive gamers and power users.

Backed by a 3-year warranty, this motherboard combines cutting-edge technology with Asus’s renowned reliability, making it a key component for any high-performance PC build. Experience next-level gaming with the Asus ROG STRIX X870E-F GAMING WIFI DDR5.

What is the price of  Asus ROG STRIX X870E-F GAMING WIFI DDR5 Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Amd-Motherboard-0021 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 &
8000 & 7000 Series Desktop Processors*
Chipset AMD X870
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback on front panel”
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Expansion Slots
PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
M.2 Socket Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory*”
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 192GB
Graphics
Graphics 1 x DisplayPort
1 x HDMI port
2 x USB4® (40Gbps) ports support USB
Type-C® display outputs****
* Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI
2.1.
****Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
**** VGA resolution support depends on
processors’ or graphic cards’ resolution.
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Rear USB (Total 12 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 7
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4
Supported Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors**
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.
**** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
RAID * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Others
Special Features Extreme Engine Digi+
– 5K Black metallic capacitors
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIe SafeSlot)
– Q-Antenna
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Addressable Gen 2 headers
Bundled Software ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– GameFirst
– HWiNFO
– Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Dynamic OC Switcher
FlexKey
Warranty Information
Manufacturing Warranty 3 Years
