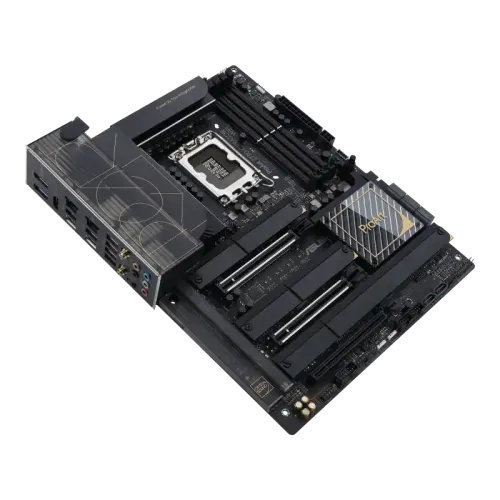

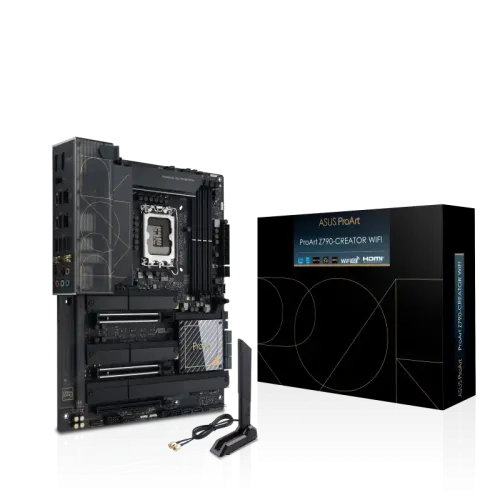

Asus ProArt Z790-CREATOR WIFI ATX Motherboard
Asus ProArt Z790-CREATOR WIFI ATX Motherboard - Image 2
Asus ProArt Z790-CREATOR WIFI ATX Motherboard - Image 3
Asus ProArt Z790-CREATOR WIFI ATX Motherboard - Image 4
Asus ProArt Z790-CREATOR WIFI ATX Motherboard
, , , , , ,

Asus ProArt Z790-CREATOR WIFI ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: ProArt Z790-CREATOR WIFI
  • Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR5
  • Graphics Output: Intel Thunderbolt 4 ports, HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6E

72,700৳  80,300৳

In stock

EMI starts at 2,683৳  - View Banks EMI Plans

ASUS ProArt Z790-CREATOR WIFI ATX Motherboard – High-Performance for Creators

The ASUS ProArt Z790-CREATOR WIFI ATX Motherboard is engineered for creators and professionals seeking the power of Intel’s 14th, 13th, and 12th Gen processors. Featuring the LGA 1700 socket and Z790 chipset, this motherboard supports cutting-edge CPUs, ensuring seamless performance for resource-intensive tasks like video editing, rendering, and gaming.

Key Features of ASUS ProArt Z790-CREATOR WIFI

With four DDR5 DIMM slots, you can achieve up to 128GB of RAM, delivering fast speeds and enhanced multitasking capabilities. The motherboard offers eight SATA and four M.2 connectors, providing ample storage for large media libraries. Expand your system with two PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot, allowing for advanced graphics cards and utility cards.

Stay connected with USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 ports, which support peripherals like keyboards, mice, and external storage. The inclusion of Bluetooth 5.3 enhances wireless connectivity for devices such as headphones and controllers. For fast, reliable networking, the dual RJ45 ports offer 2.5G and 10G Ethernet, while Wi-Fi 6E provides high-speed wireless access.

Power Design The 16+1 power stage design ensures stable power delivery for high-performance applications, supported by 8+4 ProCool sockets, alloy chokes, and durable capacitors.

M.2 PCIe 4.0 Storage With M.2 PCIe 4.0 support, you can load programs and games quickly from SSDs, speeding up workflows.

Thunderbolt 4 Dual Thunderbolt 4 ports offer up to 40 Gb/s data transfer speeds, supporting DisplayPort and Power Delivery for a single-cable solution to connect storage arrays and displays.

Comprehensive Cooling Advanced cooling features like VRM heatsinks, M.2 heatsinks, and Fan Xpert 2+ ensure your system runs cool even under heavy loads.

Backed by a 3-year warranty, the ASUS ProArt Z790-CREATOR WIFI is perfect for creators seeking top-tier performance and connectivity.

What is the price of  ASUS ProArt Z790-CREATOR WIFI Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of ASUS ProArt Z790-CREATOR WIFI Motherboard Motherboard in Bangladesh is 73,000৳.

So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Intel-Motherboard-0033 Categories: , , , , , , Tags: , , , ,
Basic Information
Supported CPU Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 256 Mb
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit
Expansion Slots
PCI Intel 13th & 12th Gen Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket Total supports 4 x M.2 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)
/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 2 x DisplayPort
USB (s) Rear USB (Total 8 ports)
2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)Front USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s) 1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
Audio 5 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
5 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2×2 (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
Back Panel I/O Ports
2 x Thunderbolt 4 USB Type-C port(s)
6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
2 x DisplayPort (Input only)
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Box Headers
– ProCool II
– Pre-mounted I/O shield
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 header(s)
Bundled Software ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 4 with AI Cooling II
– Two-Way AI Noise Cancelation
– Power Saving
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ Power Control
– Turbo app
– PC Cleaner
ASUS CPU-Z
IT Management software supported
– ASUS Control Center Express(ACCE)
ProArt Creator Hub
CreationFirst
MyAsus
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
Warranty Information
Manufacturing Warranty 3 years warranty
