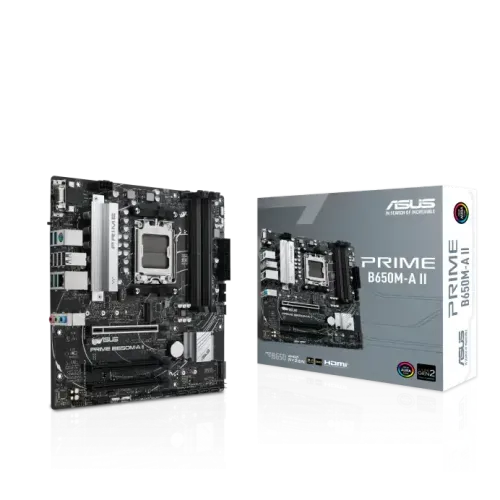

Asus PRIME B650M-A II AM5 mATX Motherboard
Asus PRIME B650M-A II AM5 mATX Motherboard - Image 2
Asus PRIME B650M-A II AM5 mATX Motherboard - Image 3
Asus PRIME B650M-A II AM5 mATX Motherboard - Image 4
Asus PRIME B650M-A II AM5 mATX Motherboard
, , , , , ,

Asus PRIME B650M-A II AM5 mATX Motherboard

Asus
Availability:

In stock
Add to wishlist

Short Description

  • Model: PRIME B650M-A II
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 7600+(OC)
  • Graphics Output: 1x HDMI, 1x Display Port, 1 x VGA
  • Features: Realtek 2.5Gb Ethernet

18,400৳  19,790৳

In stock

EMI starts at 679৳  - View Banks EMI Plans

Asus PRIME B650M-A II AM5 mATX Motherboard

The Asus PRIME B650M-A II AM5 mATX Motherboard is designed for high-performance computing and AI-driven applications, offering top-tier features for modern users. Built around the AM5 socket, this motherboard supports the latest AMD Ryzen desktop processors, ensuring a powerful and future-proof foundation for your system.

Equipped with DDR5 memory support, it allows users to harness the speed and efficiency of next-gen memory technology. Additionally, the inclusion of PCIe 5.0 M.2 slots ensures ultra-fast data transfer and storage, significantly enhancing system performance.

One of the key strengths of the Asus PRIME B650M-A II is its robust connectivity options. The Realtek 2.5Gb Ethernet provides fast, reliable network speeds, ideal for demanding tasks such as gaming or heavy workloads. Furthermore, USB 3.2 Gen 2 and front-panel USB 3.2 Gen 1 Type-C ports offer high-speed data transfer and versatile peripheral connectivity, making this motherboard a flexible solution for any setup.

To enhance memory performance, ASUS OptiMem II technology is integrated, optimizing memory trace routing for improved signal integrity and better overclocking capabilities. This allows users to fine-tune their system for greater performance.

Thermal management is another focus, with dedicated VRM and PCH heatsinks, along with Fan Xpert 2+ technology and hybrid fan headers, ensuring the system stays cool even during intensive tasks. This offers superior stability and efficiency for long-term use.

For aesthetics, Aura Sync RGB lighting is supported, with Addressable Gen 2 and Aura RGB headers for seamless synchronization with other Aura Sync-capable devices. This enables complete customization for a visually striking system.

With cutting-edge features, high-speed connectivity, and advanced cooling, the Asus PRIME B650M-A II Motherboard is an ideal choice for building a future-ready, high-performance PC. It also comes with a 3-year warranty for added peace of mind.

What is the price of  Asus PRIME B650M-A II Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of Asus PRIME B650M-A II Motherboard in Bangladesh is 18,400৳.

So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Amd-Motherboard-0007 Categories: , , , , , , Tags: , , ,
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Maximum Memory Max. 192GB
Graphics
Graphics 1 x DisplayPort**
1 x VGA port
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel headerBack Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years
