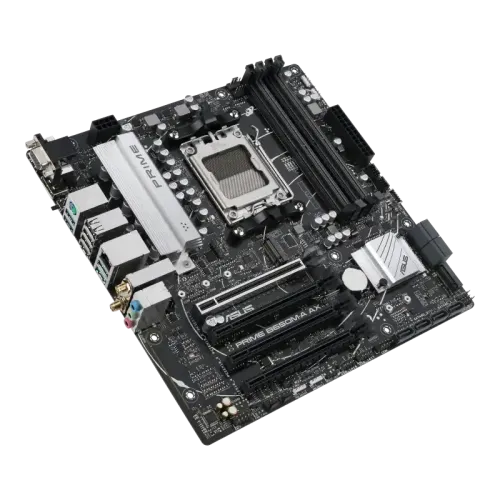

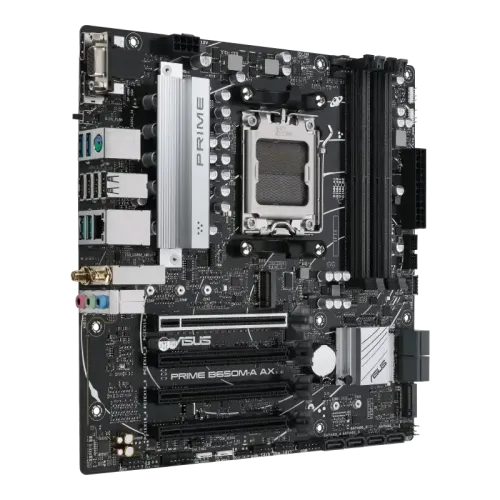

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard - Image 2
Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard - Image 3
Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard - Image 4
Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
, , , , , ,

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: PRIME B650M-A AX
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 5600(OC)
  • Graphics Output: 1x HDMI, 1x Display Port, 1 x VGA
  • Features: Realtek 2.5Gb Ethernet, Wi-Fi 6

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard: Optimized for Performance and Productivity

The Asus PRIME B650M-A AX DDR5 AM5 Micro-ATX Motherboard is designed to harness the full power of AMD Ryzen™ 8000 and 7000 series processors with its AM5 socket. Engineered for performance, this motherboard offers a robust power design, comprehensive cooling solutions, and advanced tuning options, making it ideal for high-performance computing and gaming.

Key Features of Asus PRIME B650M-A AX DDR5 AM5

Supporting DDR5 memory, this motherboard ensures blazing-fast data speeds and multitasking capabilities. Its 6-layer PCB design enhances heat management, providing greater overclocking potential. With VRM heatsinks and thermal pads, it optimizes heat dissipation, keeping your system cool and stable under heavy workloads. The Fan Xpert 2+ software and UEFI BIOS offer advanced cooling controls, allowing you to customize fan speeds for optimal performance.

The Asus PRIME B650M-A AX features two M.2 slots, with the first supporting PCIe 5.0 for data transfer speeds up to 128Gbps. Additional connectivity options include Wi-Fi 6, Realtek 2.5Gb Ethernet, and USB 3.2 Gen 2 ports for fast and smooth data transfers. The front USB 3.2 Gen 1 Type-C port adds convenience for easy connectivity.

Built to support demanding tasks, this motherboard offers flexible tuning tools that allow you to optimize your system’s performance to match your workload, making it a versatile choice for gamers, content creators, and professionals alike.

Whether you’re building a new PC or upgrading an existing system, the Asus PRIME B650M-A AX delivers superior performance, efficient cooling, and high-speed connectivity, ensuring a seamless experience. Backed by 3 years of warranty, this motherboard provides reliability and future-proof features for your next-gen AMD build.

What is the price of  Asus PRIME B650M-A AX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Amd-Motherboard-0024 Categories: , , , , , , Tags: , , ,
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset AMD B650 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort**
1 x VGA port
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
Supported Storage Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
8 x SATA 6Gb/s ports**
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** The SATA6G_E12/E34 ports cannot support RAID.
Audio Audio Connectors
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years
