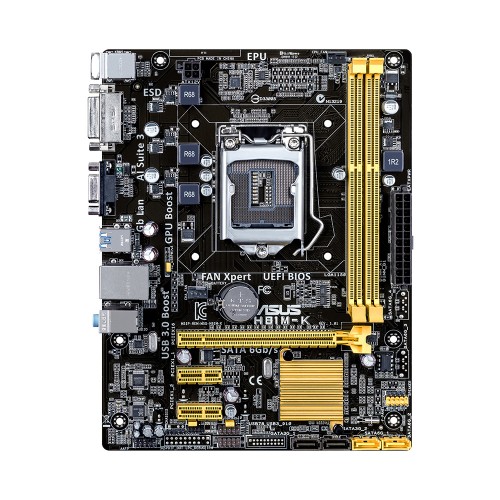

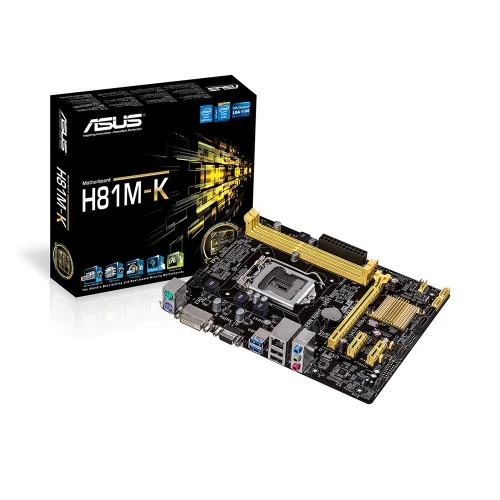

Asus H81M-K 4th Gen Motherboard
Asus H81M-K 4th Gen Motherboard - Image 2
Asus H81M-K 4th Gen Motherboard - Image 3
Asus H81M-K 4th Gen Motherboard
, , , , , ,

Asus H81M-K 4th Gen Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: TUF GAMING B650M-PLUS
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 6400+(OC)
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: Realtek 2.5Gb Ethernet

9,250৳  10,230৳

In stock

EMI starts at 341৳  - View Banks EMI Plans

Asus H81M-K 4th Gen Motherboard: Power, Speed, and Reliability

The Asus H81M-K 4th Gen Motherboard is designed to support Intel’s 4th generation Core i7/i5/i3, Pentium, and Celeron processors with LGA1150 socket compatibility. Powered by the Intel H81 chipset, this motherboard delivers efficient performance for everyday computing, gaming, and multitasking. With integrated iGPU, memory, and PCI Express controllers, the H81M-K supports onboard graphics output, dual-channel DDR3 memory (2 DIMM slots), and 16 PCI Express lanes, providing a solid foundation for both home and office builds.

Product Features

One of its key features is the support for USB 3.0, offering up to 10x faster data transfer speeds compared to USB 2.0. Equipped with two native USB 3.0 ports, the Asus H81M-K allows for quick and efficient file transfers, ideal for managing large data sets or streaming high-definition content. In addition, ASUS USB 3.0 Boost technology enhances transmission speed by up to 170% with UASP (USB Attached SCSI Protocol) support, ensuring faster performance for compatible devices without manual configuration.

The Intel H81 chipset ensures that users can enjoy Intel integrated graphics, providing smooth visual performance for basic gaming, media playback, and other graphical tasks. Its compact micro-ATX form factor is perfect for space-conscious builds while still offering essential features.

This motherboard is backed by ASUS’s 3-year warranty, ensuring long-term reliability and peace of mind for users. Whether you’re building a home PC, office workstation, or light gaming rig, the Asus H81M-K provides a cost-effective and feature-rich solution for Intel’s 4th gen processors. Ideal for budget-conscious users looking for reliable performance and advanced connectivity.

What is the price of  Asus H81M-K Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Intel-Motherboard-0001 Categories: , , , , , , Tags: , , ,
Basic Information
Supported CPU Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
Chipset Intel H81
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Audio Realtek ALC887/897 8-Channel High Definition Audio CODEC
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Expansion Slots
PCI 1 x PCIe x16
2 x PCIe 2.0 x1
Memory
Type DDR3
Slots 2 x DIMM
Supported Memory 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Max. 16GB
Graphics
Graphics Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Max Shared Memory 1024 MB
Connector & Ports
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI
USB (s) Intel H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
LAN Port (s) Realtek 8111G, 1 x Gigabit LAN Controller(s)
Supported Storage Intel H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology
Audio 3 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Others
Special Features ASUS EPU :
– EPU
ASUS Exclusive Features :
– GPU Boost
– AI Suite 3
– Ai Charger
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
ASUS Q-Design :
– ASUS Q-Slot
Warranty Information
Manufacturing Warranty 3 Years
