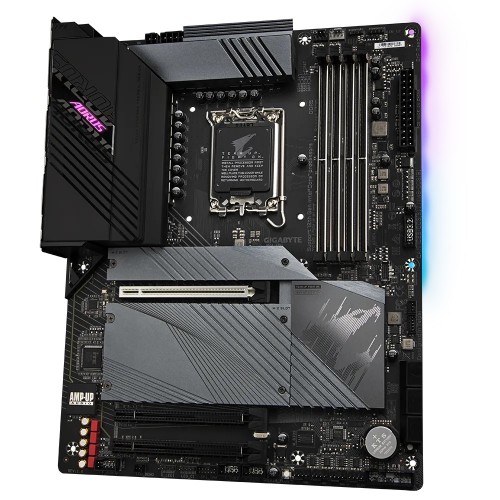

The GIGABYTE Z690 AORUS ELITE ATX Motherboard is engineered to support 14th, 13th, and 12th Gen Intel Core processors, ensuring exceptional performance for gamers and creators alike. With dual-channel DDR5 support and 4 DIMM slots, it accommodates non-ECC unbuffered DDR5 memory, providing enhanced memory speeds for smooth multitasking and gaming.
Designed with a 16+1+2 Twin Hybrid Phases Digital Power Design featuring 60A DrMOS and Tantalum Polymer Capacitors, this motherboard delivers robust power delivery for stable performance. Its DDR5 XTREME MEMORY Design, along with SMD DIMM and Shielded Memory Routing, ensures maximum memory bandwidth and overclocking capabilities with XMP 3.0 support. The new DDR5 architecture boosts memory bandwidth by 50%, drastically improving system performance.
Additionally, AMP-UP Audio with ALC1220 and WIMA audio capacitors ensures superior sound quality, enhancing your immersive gaming experience.
The GIGABYTE AORUS ELITE also includes SuperSpeed USB 3.2 Gen2x2 Type-C, providing up to 20Gb/s transfer speeds. The RGB FUSION 2.0 lighting system supports customizable addressable LED strips, adding visual flair to your setup.
Other features include Smart Fan 6 with multiple temperature sensors and hybrid fan headers for optimized cooling. The Q-Flash Plus feature allows easy BIOS updates without needing to install the CPU, RAM, or graphics card.
Backed by a 3-year warranty, the GIGABYTE Z690 AORUS ELITE ATX Motherboard delivers the ultimate platform for next-gen gaming and high-performance computing.
What is the price of GIGABYTE Z690 AORUS ELITE ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE Z690 AORUS ELITE ATX Motherboard in Bangladesh is 28,500৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel Z690 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek ALC1220-VB CODEC
The back panel line out jack supports DSD audio.
High Definition Audio
2-channel analog output
Support for S/PDIF Out
7.1-channel digital signals
Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
Expansion Slots
PCI
1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.Intel Optane Memory Ready
System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
4 x DDR DIMM sockets (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Maximum Memory
supporting up to 128 GB
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.Intel Optane Memory Ready
System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio
Realtek ALC1220-VB CODEC
The back panel line out jack supports DSD audio.
High Definition Audio
2-channel analog output
Support for S/PDIF Out
7.1-channel digital signals
Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
Internal I/O Ports
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.Back Panel Connectors
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacksI/O Controller:
iTE I/O Controller Chip
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty
3 years
