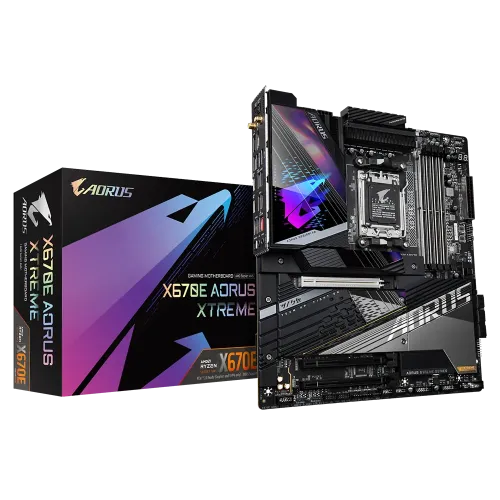

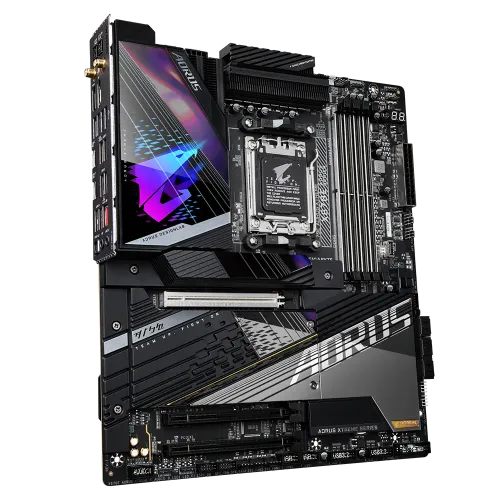

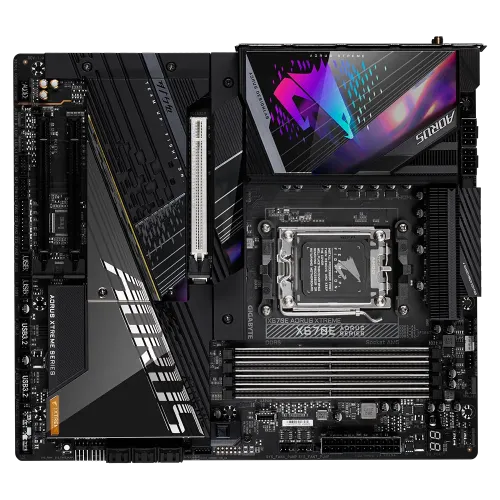

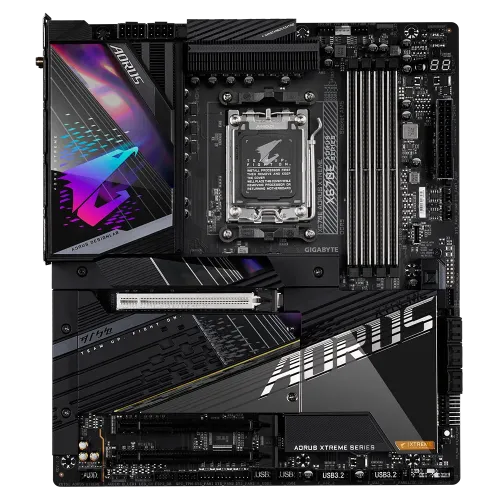

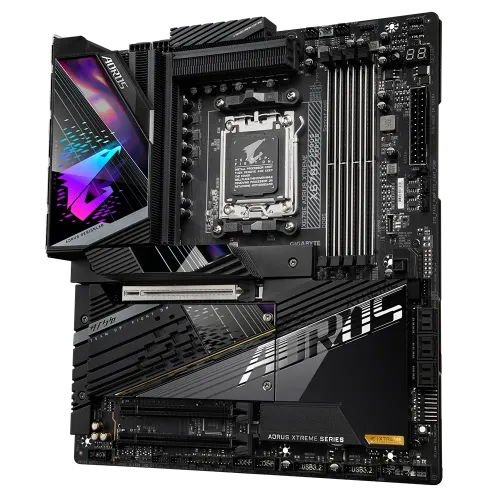

GIGABYTE X670E AORUS XTREME DDR5 AMD AM5 E-ATX Motherboard
In stock
Short Description
- Model: X670E AORUS XTREME
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 128GB
- Graphics Output: 1 x HDMI, 1 x DisplayPort
- Features: Marvell AQtion 10GbE LAN & Intel Wi-Fi 6E 802.11ax
GIGABYTE X670E AORUS XTREME DDR5 AMD AM5 E-ATX Motherboard
The GIGABYTE X670E AORUS XTREME DDR5 AMD AM5 E-ATX Motherboard is designed for enthusiasts and gamers, delivering top-tier performance for AMD Ryzen 8000 & 7000 Series Processors on the AM5 socket. With an advanced 18+2+2 Phases Digital VRM Solution, this motherboard ensures efficient power delivery, enabling superior performance under heavy workloads.
This motherboard supports DDR5 memory with speeds up to 6600 MHz (OC), offering compatibility with both AMD EXPO and Intel XMP memory modules. Its 4x PCIe 5.0 x4 M.2 connectors deliver ultra-fast storage capabilities, perfect for high-performance applications. The M.2 Thermal Guard III ensures that PCIe 5.0 M.2 SSDs maintain peak performance by preventing thermal throttling, even under intensive tasks.
The Fins-Array III cooling solution dramatically enhances heat dissipation with a surface area larger than two full-sized ATX motherboards. This design maximizes thermal efficiency, ensuring that your system remains cool and stable, even during demanding operations. The SMD PCIe 5.0 x16 slot and M.2 connectors feature a quick-release, screwless design for hassle-free installation and upgrades.
For network connectivity, the GIGABYTE X670E AORUS XTREME is equipped with Wi-Fi 6E support, offering gigabit wireless performance on a dedicated 6GHz band. This ensures seamless video streaming, smooth gaming, and faster data transfers with speeds up to 2.4 Gbps. Additionally, Bluetooth 5.2 provides enhanced range and faster transmission over previous generations.
Designed with performance, efficiency, and ease of use in mind, the GIGABYTE X670E AORUS XTREME is the perfect choice for building a future-proof gaming or workstation PC. Backed by a 3-year warranty, it offers a reliable platform for high-end computing needs.
What is the price of GIGABYTE X670E AORUS XTREME Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for : AMD Ryzen 8000 & 7000 Series Processors | |
| Chipset | AMD X670 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | E-ATX Form Factor; 30.5cm x 26.9cm | |
| Audio | Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless Communication module | Wireless Communication module Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support (M2B_CPU/M2C_CPU/M2D_CPU) * Actual support may vary by CPU. Chipset: 6 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper Voltage Measurement Points |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
