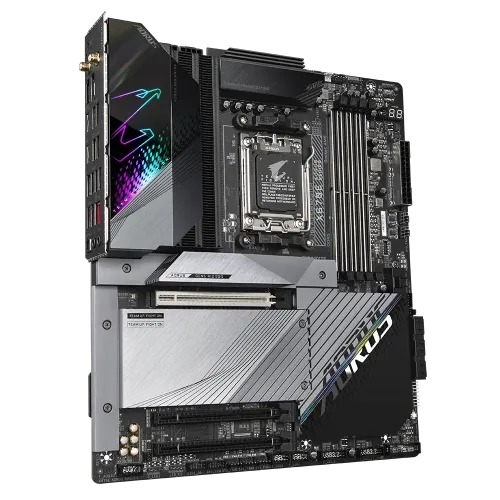

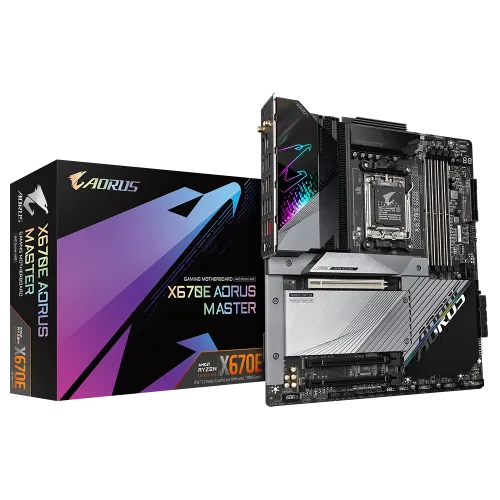

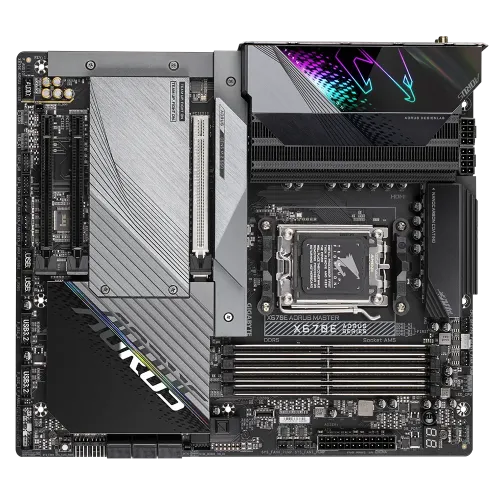

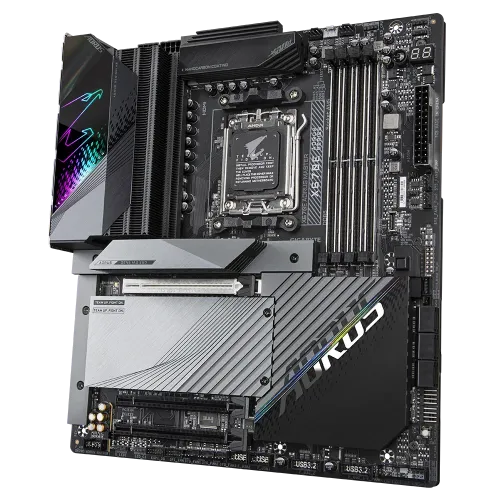

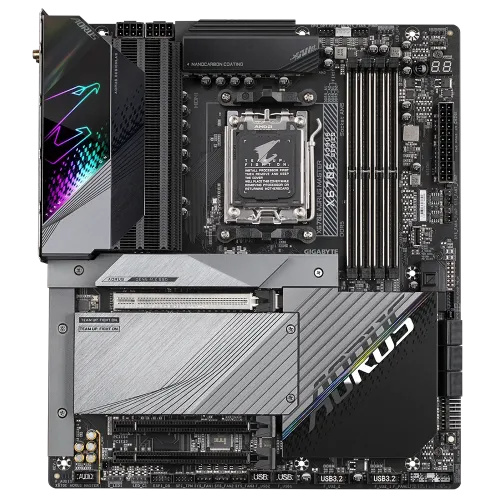

GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard
In stock
Short Description
- Model: X670E AORUS MASTER
- Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 128GB
- Graphics Output: 1 x DisplayPort, 1 x USB Type-C, 1 x HDMI
- Features: Intel 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax
59,900৳ 62,000৳
In stock
GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard
The GIGABYTE X670E AORUS MASTER Motherboard is a top-tier choice for enthusiasts, supporting AMD Ryzen 8000 and 7000 Series Processors via the AMD AM5 socket. Engineered for unparalleled performance, it features a 16+2+2 Phases Digital VRM Solution that ensures stable power delivery, making it ideal for overclocking.
Memory and Storage Capabilities
Equipped with 4 SMD DIMMs, this motherboard supports both AMD EXPO and Intel XMP Memory Modules. It can handle DDR5 memory speeds of 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, and 4400 MT/s, allowing for exceptional performance. For next-generation storage solutions, it features 4 PCIe 5.0 x4 M.2 Connectors, ensuring rapid data transfer speeds.
Advanced Thermal Management
The Fins-Array III technology enhances thermal performance by utilizing extended irregular fins, maximizing surface area for superior heat dissipation. Its heatsink surface area is larger than two full-size ATX motherboard PCBs, significantly improving thermal efficiency. Additionally, the M.2 Thermal Guard III boasts a 9X optimized heat dissipation surface, preventing throttling during intensive tasks.
Enhanced Connectivity Options
With DisplayPort over USB Type-C, users can achieve full DisplayPort A/V performance, supporting monitor resolutions of 4K and beyond. The SuperSpeed USB (USB 3.2 Gen 2) offers 10Gbps data transfer rates and power delivery, all while ensuring a convenient reversible plug orientation.
Cutting-Edge Wireless Technology
The GIGABYTE X670E AORUS MASTER is equipped with the latest 802.11ax Wi-Fi 6E, featuring a dedicated 6GHz band for gigabit wireless performance. This technology enhances video streaming, gaming experiences, and minimizes dropped connections, offering speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over previous versions for quicker transmission.
Warranty and Reliability
With a 3-year warranty, the GIGABYTE AORUS MASTER motherboard combines cutting-edge features with reliability, making it the perfect foundation for high-performance PC builds.
What is the price of GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard in Bangladesh is 59,900৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for : AMD Ryzen 8000 & 7000 Series Processors | |
| Chipset | AMD X670 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | E-ATX Form Factor; 30.5cm x 26.9cm | |
| Audio | Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel output * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot. Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 6 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
