Short Description

  • Model: H610M K DDR5
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI 2.1, 1 x DisplayPort
  • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

11,200৳  12,650৳

In stock

EMI starts at 413৳  - View Banks EMI Plans

GIGABYTE H610M K DDR5 Micro ATX Motherboard

The GIGABYTE H610M K DDR5 Micro ATX motherboard is a powerful and compact solution for users seeking optimal performance with Intel’s 14th, 13th, and 12th Gen processors, thanks to its LGA1700 socket. Engineered for high-performance tasks like gaming and content creation, this motherboard supports up to 64GB of DDR5 RAM across four DIMM slots, with memory speeds reaching up to 3200 MHz, delivering faster data transfer through Dual Channel Non-ECC Unbuffered memory.

Equipped with an HDMI 2.1 port, the GIGABYTE K DDR5 provides sharp and vivid high-definition graphics output, ideal for gamers and multimedia creators. It also features a Realtek GbE LAN chip for fast networking with speeds of up to 1 Gbps, ensuring smooth online gaming and streaming, with added support for 100 Mbps connections and bandwidth management.

For rapid data access, the NVMe PCIe 3.0 x4 M.2 slot offers a high-speed storage solution, drastically reducing load times for applications and games. Superior sound quality is ensured by high-quality audio capacitors and an audio noise guard, providing clear and immersive audio experiences.

The Smart Fan 6 technology provides advanced cooling with multiple temperature sensors and hybrid fan headers, including a fan stop function for quiet operation. Additionally, the motherboard integrates GIGABYTE’s APP Center for easy system management. With its Anti-Sulfur resistor design, the GIGABYTE K DDR5 ensures long-term durability, making it a reliable choice for building high-performance PCs with cutting-edge features.

This motherboard is a perfect foundation for users looking to build a future-proof, high-performance system with the latest technology.

What is the price of GIGABYTE H610M K DDR5 Micro ATX motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE H610M K DDR5 Micro ATX motherboard in Bangladesh is 11,200৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-intel-0016 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset Intel H610 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 2 x DIMM sockets
Supported Memory Support for 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
4800/4400 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memor
Maximum Memory Supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
– 2 x SATA 6Gb/s connectors
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header

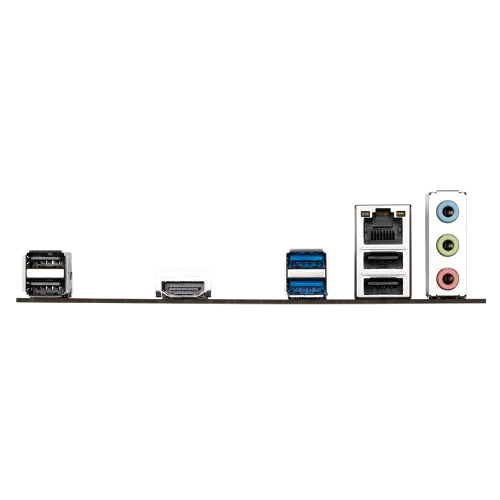

1 x Clear CMOS jumperBack Panel Connectors
1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features iTE I/O Controller Chip
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years Warranty
