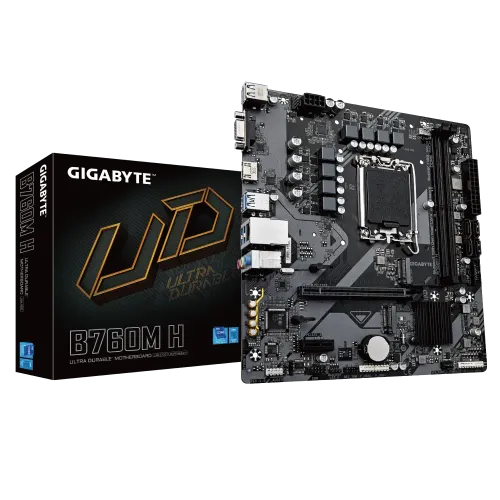

GIGABYTE B760M H DDR5 Micro ATX Motherboard
In stock
Short Description
- Model: B760M H DDR5
- Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 2 x DDR5, Max 128GB 8000(O.C.)
- Graphics Output: 1x HDMI, 1 x D-Sub
- Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
15,200৳ 17,050৳
In stock
GIGABYTE B760M H DDR5 Micro ATX Motherboard

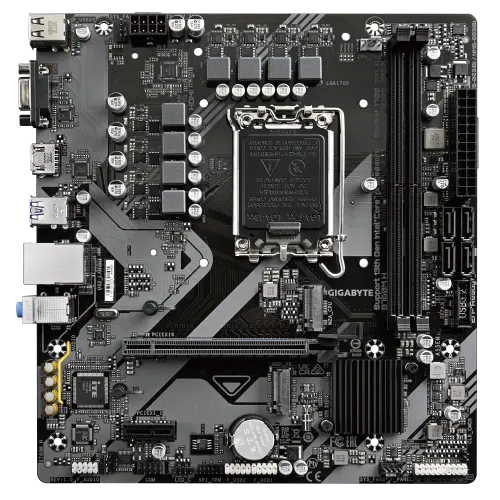

The GIGABYTE B760M H DDR5 Micro ATX motherboard is engineered to support Intel’s 14th, 13th, and 12th Gen processors via the LGA1700 socket, offering a future-proof platform for gamers, creators, and power users. This motherboard is equipped with two DIMM slots that support up to 128GB of DDR5 RAM with overclocking capabilities of up to 8000 MHz, ensuring smooth performance and multitasking.
Designed for flexibility, it features HDMI and D-Sub ports, allowing users to connect to a variety of display setups. For networking, the Realtek GbE LAN chip provides reliable 1 Gbps connectivity, perfect for high-speed internet and data transfers.
This motherboard features a Hybrid 6+1+1 Phases Digital VRM Solution, ensuring stable power delivery to the CPU and critical components, making it ideal for intensive applications. Storage options are robust with two PCIe 4.0 x4 M.2 connectors, offering ultra-fast data transfer for SSDs, making it perfect for high-speed gaming or productivity.
The PCIe 4.0 x16 slot includes the EZ-Latch quick-release design, simplifying hardware upgrades and installations. The Smart Fan 6 system enhances cooling with multiple temperature sensors and hybrid fan headers, ensuring efficient thermal management. The fan stop feature guarantees quieter operation when the system is running cool.
With its combination of high-speed DDR5 support, flexible connectivity, and advanced cooling features, the GIGABYTE H DDR5 is an excellent choice for building a future-ready PC.
Key Features:
- Supports Intel 14th/13th/12th Gen CPUs (LGA1700)
- Dual-channel DDR5 memory up to 128GB
- PCIe 4.0 x4 M.2 slots for fast storage
- Realtek GbE LAN for stable 1 Gbps network speeds
- Smart Fan 6 for efficient cooling management
Elevate your PC build with the GIGABYTE B760M H DDR5 Micro ATX motherboard.
What is the price of GIGABYTE B760M H DDR5 Micro ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B760M H DDR5 Micro ATX Motherboard in Bangladesh is 15,300৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||

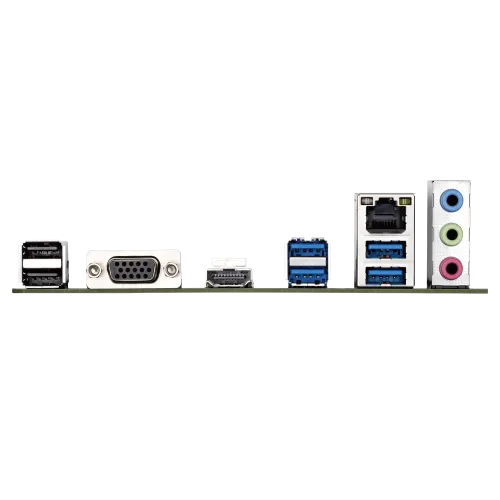

| HDMI | 1x HDMI | |
| D-Sub (s) | 1 x D-Sub port | |
| USB (s) | Chipset: – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumperBack Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
