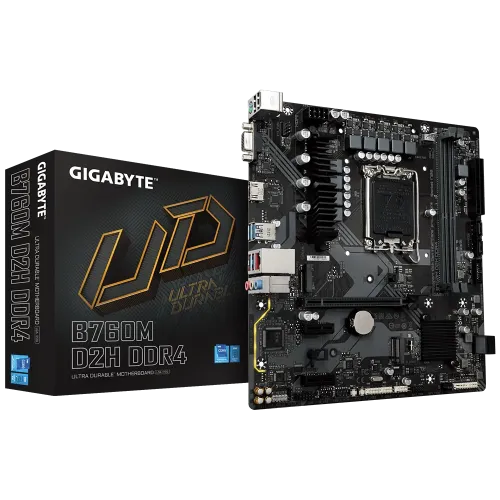

GIGABYTE B760M D2H DDR4 mATX Motherboard

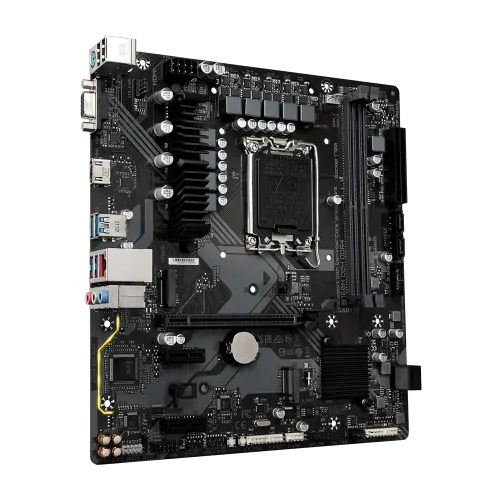

GIGABYTE B760M D2H DDR4 mATX Motherboard - Image 2
GIGABYTE B760M D2H DDR4 mATX Motherboard - Image 3
GIGABYTE B760M D2H DDR4 mATX Motherboard
, , , , , ,

GIGABYTE B760M D2H DDR4 mATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B760M D2H DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip

14,900৳  16,480৳

In stock

EMI starts at 550৳  - View Banks EMI Plans

GIGABYTE B760M D2H DDR4 mATX Motherboard

The GIGABYTE B760M D2H DDR4 motherboard is designed to support Intel’s 14th, 13th, and 12th generation processors, featuring the LGA 1700 socket for compatibility. Engineered with a hybrid 6+2+1 phase digital VRM system, this motherboard ensures exceptional power delivery for optimized performance.

Supporting dual-channel DDR4 memory, it offers two XMP slots for high-speed memory configurations, and two PCIe 4.0 x4 M.2 slots for ultra-fast storage. The PCIe 4.0 x16 slot comes with an EZ-Latch quick-release design for easy upgrades, while the 2.5GbE LAN port ensures blazing-fast network connectivity, ideal for gaming and data-intensive tasks.

For display outputs, the motherboard provides HDMI and D-Sub ports, offering flexibility for multiple monitor setups. The Smart Fan 6 technology features multiple temperature sensors and hybrid fan headers, allowing for precise cooling control. Fan stop functionality ensures quiet and efficient operation.

Updating the BIOS is seamless with the Q-Flash Plus feature, allowing users to upgrade the BIOS without needing to install the CPU, RAM, or graphics card.

With its powerful performance, advanced features, and future-ready design, the GIGABYTE D2H DDR4 is a top choice for building a high-performance PC.

Key Features:

  • Supports Intel 14th/13th/12th Gen CPUs (LGA 1700)
  • Dual-channel DDR4 memory with XMP support
  • PCIe 4.0 x4 M.2 slots for fast storage
  • 2.5GbE LAN for high-speed networking
  • Smart Fan 6 with hybrid fan headers and fan stop technology

Optimize your PC build with the GIGABYTE D2H DDR4 motherboard for ultimate performance and efficiency.

What is the price of GIGABYTE B760M D2H DDR4 mATX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B760M D2H DDR4 mATX Motherboard in Bangladesh is 15,300৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-intel-0021 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Memory
Type DDR4
Slots 2
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty 3 years
