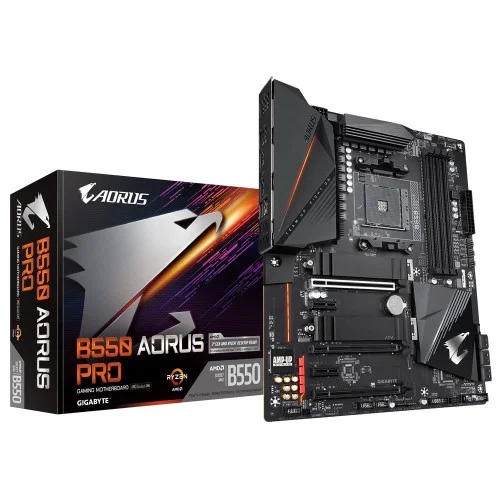

GIGABYTE B550 Aorus Pro AM4 ATX Motherboard
GIGABYTE B550 Aorus Pro AM4 ATX Motherboard - Image 2
GIGABYTE B550 Aorus Pro AM4 ATX Motherboard - Image 3
GIGABYTE B550 Aorus Pro AM4 ATX Motherboard
, , , , , ,

GIGABYTE B550 Aorus Pro AM4 ATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B550 Aorus Pro
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Blazing Fast 2.5GbE LAN
  • Advanced Thermal Design
  • AMP-UP Audio with ALC1220-VB

GIGABYTE B550 Aorus Pro AM4 ATX Motherboard: Ultimate Performance for Enthusiasts

The GIGABYTE B550 Aorus Pro AM4 ATX Motherboard is designed to power the latest 3rd Gen AMD Ryzen™ processors with a robust 12+2 phase digital power design. This high-performance motherboard ensures precise power delivery, optimizing system performance for overclocking and demanding applications. The exclusive 2X Copper PCB design enhances power delivery and heat dissipation, providing a stable platform for enthusiasts who push their systems to the limit.

Unparalleled Performance and PCIe 4.0 Support

Engineered for speed, the B550 AORUS Pro supports PCIe 4.0, offering faster data transfer rates and smoother performance. Optimized memory trace design ensures compatibility with memory speeds up to 5400MHz with XMP support. Multiple M.2 slots with thermal guards prevent throttling, allowing for uninterrupted performance, even during intense tasks.

Advanced Thermal Solution

Keep your system cool under pressure with the advanced thermal solution, featuring Fins-Array Heatsinks, Direct Touch Heatpipes, and M.2 Thermal Guards. This design efficiently dissipates heat from critical components, such as MOSFETs and SSDs, ensuring lower temperatures and enhanced performance for gamers and overclockers alike.

Next-Generation Connectivity

Future-proof your system with the latest connectivity options. The B550 AORUS Pro includes 2.5G LAN for ultra-fast networking, USB 3.2 Gen2 for transfer speeds up to 10Gbps, and HDMI 2.1 support for 4K/60Hz visuals. This motherboard provides the bandwidth and compatibility needed for gaming, streaming, and high-speed data transfers.

Hi-Fi Audio for Immersive Sound

Featuring Hi-Fi grade WIMA FKP2 and Nichicon Fine Gold capacitors, the Gigabyte B550 AORUS Pro delivers premium sound quality. With ALC1220 HD Audio and Smart Headphone Amp, enjoy rich, distortion-free audio, whether gaming or streaming. AORUS AMP-UP Audio technology ensures the ultimate auditory experience for audiophiles.

What is the price of  GIGABYTE B550 Aorus Pro AM4 Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd.  So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Gigabyte-AMD-Motherboard-0009 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU AMD Ryzen 5000 Series / 3rd Generation AMD Ryzen processors / 3rd Gen AMD Ryzen with Radeon Graphics processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
2 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/ x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/ x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
Support PCIe 3.0 x4/x2 SSDs
Memory
Type DDR4
Slots 4 x DIMM sockets
Supported Memory AMD Ryzen 5000 series Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen Processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Max Shared Memory 16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
USB (s) CPU:
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/ 1.1 ports on the back panel
Chipset + 2 USB 2.0 Hubs:
8 x USB 2.0/ 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/ x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/ x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
Support PCIe 3.0 x4/ x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x temperature sensor headers
1 x Thunderbolt add-in card connector
1 x Clear CMOS jumper
1 x Thunderbolt header
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years warranty
