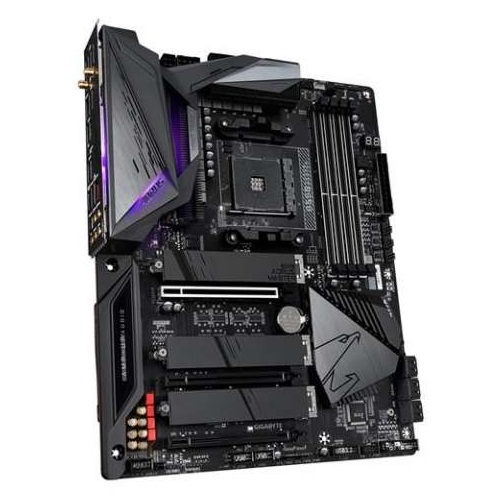

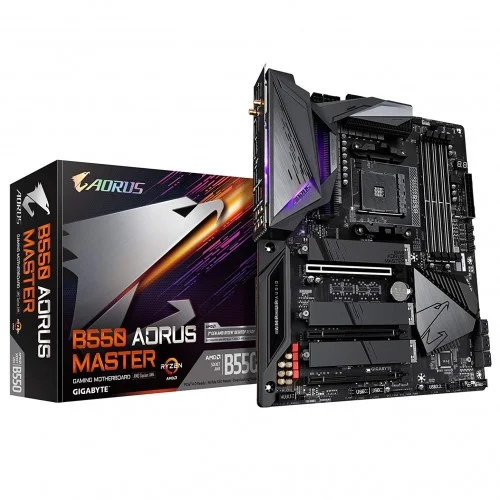

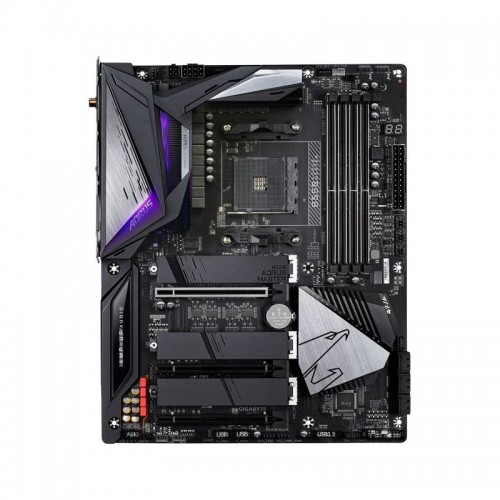

GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard
GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard - Image 2
GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard - Image 3
GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard - Image 4
GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard
, , , , , ,

GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: Gigabyte B550 Aorus Master WIFI
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Advanced Thermal Design
  • Ultra Durable PCIe 4.0 Ready
  • Direct 16 Phases Digital VRM Solution

GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard

The GIGABYTE B550 AORUS MASTER WIFI AMD Motherboard is designed to maximize your PC’s potential, incorporating AMD StoreMI technology to enhance performance. This innovative utility accelerates traditional storage devices, significantly reducing boot times and improving the overall user experience by combining the speed of SSDs with the high capacity of HDDs into a single, efficient drive. Users can enjoy enhanced read/write speeds that match SSD performance, transforming an everyday PC into a high-performance system.

To support the latest 3rd Gen AMD Ryzen processors, the B550 AORUS MASTER features a state-of-the-art power solution that utilizes a digital PWM controller and a robust 16-phase power design, delivering a total of 1,120A to power-hungry components. The motherboard’s 8+4 solid-pin CPU power connectors ensure precise and stable power delivery, allowing for maximum overclocking potential.

GIGABYTE understands that users are constantly seeking better computing performance. The B550 AORUS MASTER is equipped with protective and optimized memory traces that enhance performance, offering multiple M.2 slots with thermal guards to maintain unthrottled read and write speeds. Additionally, this motherboard is PCIe 4.0 ready, making upgrades easier and ensuring future-proofing for next-generation components.

For enhanced connectivity, the B550 AORUS MASTER provides 2.5G LAN, offering speeds up to 2.5 GbE—twice as fast as standard 1GbE networking. This feature is ideal for gamers and streamers, delivering a smooth online experience. The motherboard also includes full RGB support and a redesigned RGB Fusion 2.0 application, allowing users to customize their PC’s aesthetic.

Moreover, built with high-quality components, GIGABYTE is committed to durability and performance. The B550 AORUS MASTER is bundled with intuitive software tools that enable users to control every aspect of their motherboard, ensuring an optimal computing experience.

What is the price of  GIGABYTE B550 AORUS MASTER Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd.  So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Gigabyte-AMD-Motherboard-0019 Categories: , , , , , , Tags: , , , ,
Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
BIOS 2 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1‎ x PCI Express x16 slot (PCIEX16), integrated into the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2), integrated into the Chipset:
Supporting PCIe 3.0 x4 mode
M.2 Socket 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x4/x2 SSDs
Memory
Type Dual-Channel Architecture
Slots 4 x DDR4 memory slots
Supported Memory 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 933/ 2667/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory support up to 128GB
Graphics
Graphics 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR
Max Shared Memory 16 GB

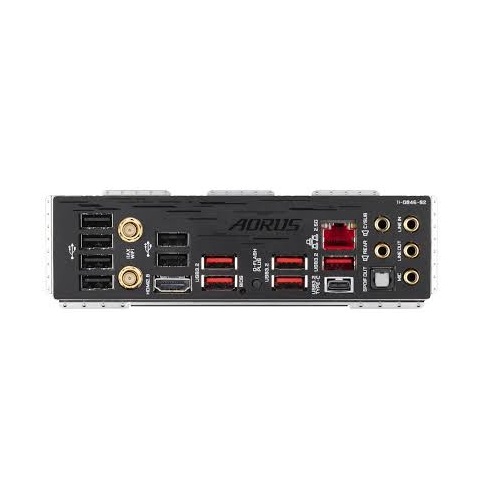

Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
USB (s) CPU:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated into the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC1220-VB codec
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Clear CMOS jumper
2 x temperature sensor headers
1 x Thunderbolt header
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 Years
