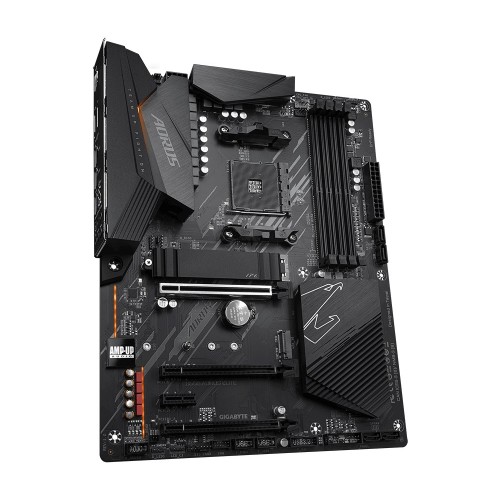

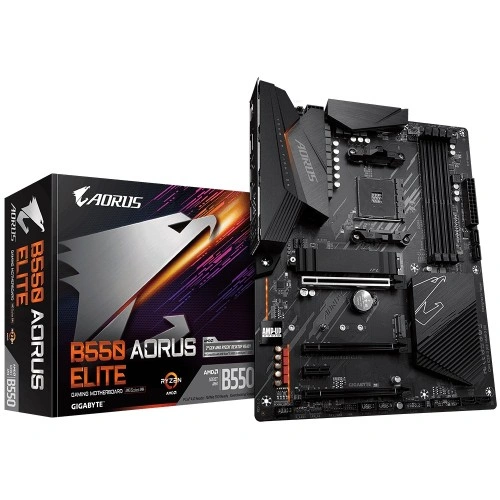

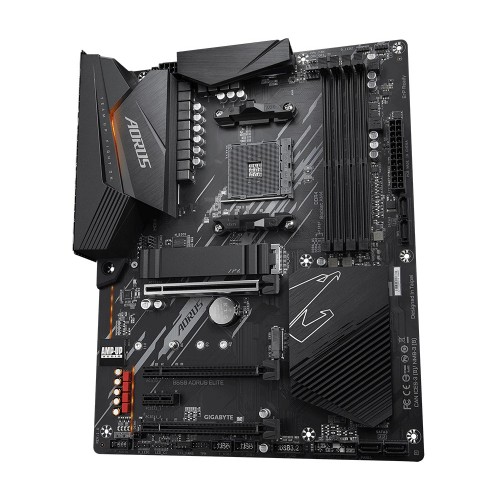

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard
Gigabyte B550 AORUS ELITE Gaming AMD Motherboard - Image 2
Gigabyte B550 AORUS ELITE Gaming AMD Motherboard - Image 3
Gigabyte B550 AORUS ELITE Gaming AMD Motherboard - Image 4
Gigabyte B550 AORUS ELITE Gaming AMD Motherboard
, , , , , ,

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard

Availability:

99 in stock
Add to wishlist
Compare

Short Description

  • Model: Gigabyte Aorus B550 Elite
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Blazing Fast 2.5GbE LAN
  • Q-Flash Plus Update BIOS
  • Ultra Durable PCIe 4.0 x16 Slot

23,500৳  25,300৳

99 in stock

Compare

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard

The Gigabyte B550 AORUS ELITE Gaming AMD Motherboard is designed for high-performance gaming, supporting the latest 3rd Gen AMD Ryzen processors with a direct, digital multi-phase power solution. This motherboard is built to provide robust power delivery, ensuring top-tier performance for gamers, overclockers, and professionals.

Equipped with PCIe 4.0 ready components, the B550 AORUS ELITE offers future-proof compatibility and faster storage options, featuring M.2 slots with thermal guards that prevent throttling during intense gaming or multitasking. The advanced thermal design, including enlarged heatsinks, high-quality thermal conductivity pads, and thermal guards, ensures that MOSFETs and SSDs stay cool even under heavy loads, delivering unthrottled performance.

The motherboard is also optimized for superior sound, featuring Hi-Fi grade WIMA FKP2 capacitors and Nichicon Fine Gold capacitors for an immersive audio experience. The AORUS AMP-UP Audio technology delivers rich bass and crystal-clear high frequencies, making it the ideal choice for audiophiles and gamers alike. The audio noise guard further enhances sound quality by isolating sensitive audio components from interference.

With RGB Fusion 2.0, users can customize lighting across onboard and external RGB components, creating a unique and stylish PC setup. Additionally, Gigabyte’s commitment to durability is evident in the high-quality components used throughout the B550 AORUS ELITE, ensuring long-lasting performance.

Bundled with intuitive software, the Gigabyte AORUS ELITE offers seamless control over every aspect of the motherboard, combining advanced hardware with easy-to-use software for an optimized gaming experience.

What is the price of Gigabyte B550 AORUS ELITE Gaming AMD Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest Gigabyte B550 AORUS ELITE Gaming AMD Motherboard in Bangladesh is 23,500৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-mboard-0022 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
– New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
– Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
– New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type Dual-Channel Architecture
Slots 4 x DDR4 memory slots
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory support up to 128GB
Graphics
Graphics 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Max Shared Memory 16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz

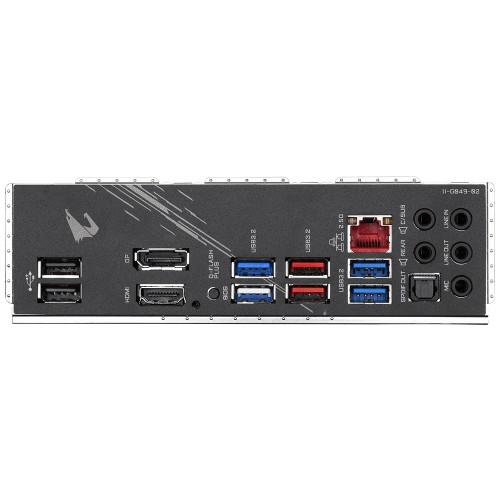

USB (s) CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
– New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
– Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Support for Windows 10 64-bit
Warranty Information
Manufacturing Warranty 03 years warranty
