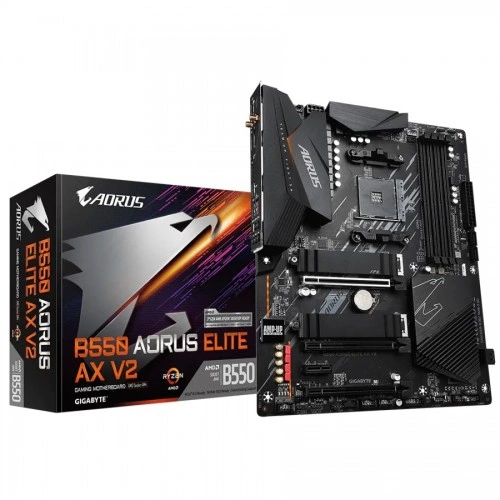

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard

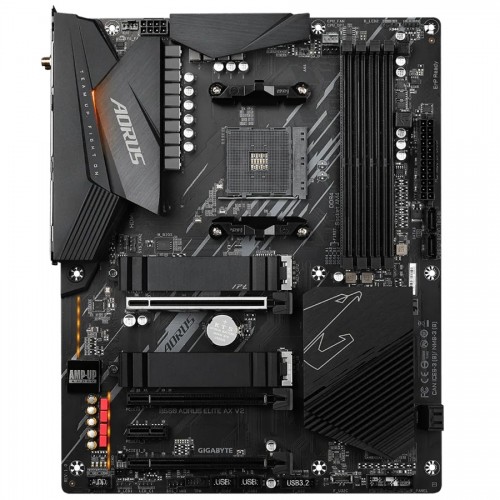

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard - Image 2

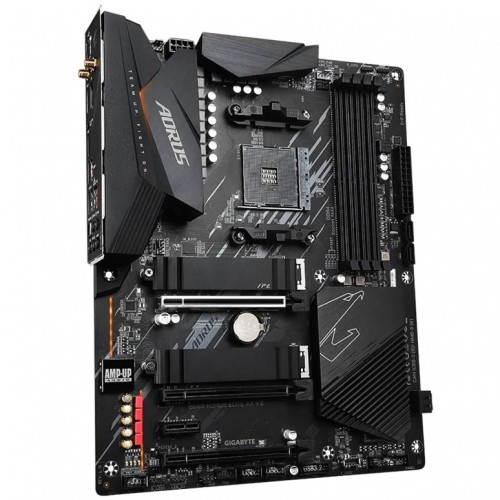

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard - Image 3

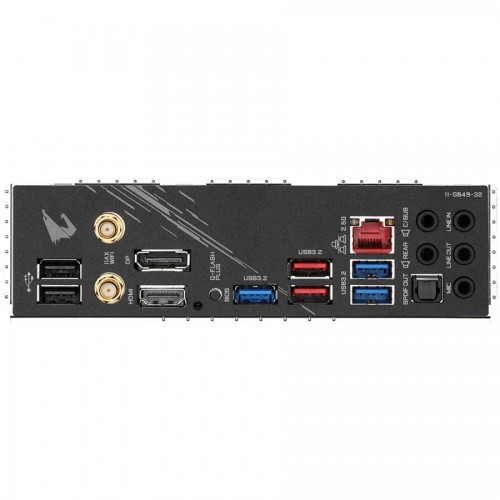

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard - Image 4
GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard
, , , , , ,

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard

Gigabyte
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: B550 Aorus Elite AX V2
  • AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
  • Onboard Intel Wi-Fi 6 802.11ax
  • 12+2 Phases Digital VRM
  • Blazing Fast 2.5GbE LAN

25,500৳  26,470৳

In stock

EMI starts at 941৳  - View Banks EMI Plans

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard

The GIGABYTE B550 AORUS Elite AX V2 AM4 ATX motherboard is designed to deliver exceptional performance for 3rd Gen AMD Ryzen processors. Featuring AORUS Core Lighting, this motherboard lights up your gaming rig with customizable RGB Fusion 2.0, providing a personalized and immersive aesthetic.

Ultimate Power Design

Equipped with a true direct, digital, and multi-phase power solution, the B550 AORUS Elite AX V2 ensures stable and efficient power delivery, even under heavy loads. This power configuration supports overclocking and maintains system stability, making it ideal for enthusiasts who demand more from their systems.

Unparalleled Performance

With PCIe 4.0 support, this motherboard boosts system responsiveness and ensures faster data transfer speeds. The optimized memory trace further enhances performance, providing faster read and write capabilities for improved efficiency. It also includes multiple M.2 storage slots with thermal guards, ensuring consistent performance without thermal throttling, perfect for high-performance SSDs.

Advanced Thermal Solution

This advanced thermal design ensures lower temperatures for key components like MOSFETs and M.2 SSDs, even during intense gaming sessions or heavy workloads.

Next-Generation Connectivity

Stay connected with 2.5G LAN, offering up to 2.5 GbE speeds for seamless online gaming and streaming. The motherboard is also equipped with Intel Wi-Fi 6 802.11ax, enabling gigabit wireless performance for faster downloads and smoother streaming. Bluetooth 5.0 ensures faster transmission and extended range, perfect for wireless peripherals.

Hi-Fi Audio System

For audiophiles, the AORUS AMP-UP Audio technology, combined with WIMA FKP2 capacitors and Nichicon Fine Gold capacitors, delivers superior sound quality, enhancing your gaming and multimedia experience.

RGB Fusion 2.0

With full support for RGB Fusion 2.0, users can fully customize their system’s lighting to reflect their unique style, offering greater LED control and synchronization across the AORUS ecosystem.

The GIGABYTE AORUS Elite AX V2 AM4 ATX motherboard is a powerful and versatile solution that delivers top-tier performance, future-proof connectivity, and advanced thermal management, making it ideal for gamers and content creators alike.

What is the price of GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard in Bangladesh is 25,500৳.

Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: giga-mboard-0026 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor: 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
– 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
– Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
– 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
– New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type DDR4
Slots 4 x DIMM slots
Supported Memory AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen :
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory support up to 128GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz
USB (s) CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 1 port on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset + USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit)
Wireless Communication module Intel Wi-Fi 6 AX200
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/ 5 GHz Dual-Band
BLUETOOTH 5
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
– 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
– New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
– Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC1200 codec
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years warranty
