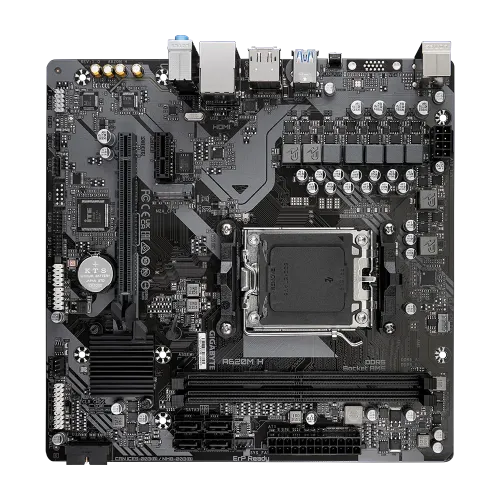

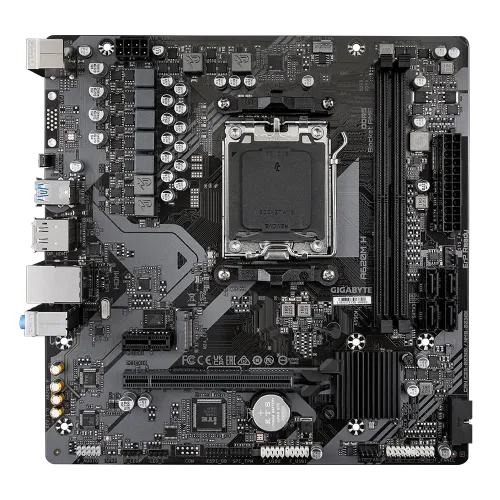

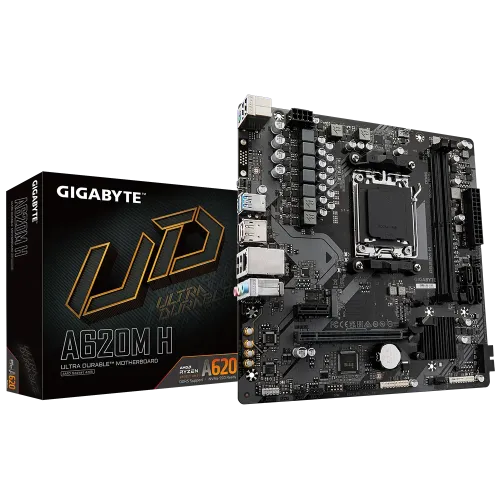

GIGABYTE A620M H AM5 Micro-ATX Motherboard
In stock
Short Description
- Model: A620M H
- Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
- Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
- Graphics Output: 2 x DisplayPort, 1 x HDMI port
- Features: 1 x DisplayPort, 1 x HDMI
11,500৳ 12,430৳
In stock
GIGABYTE A620M H AM5 Micro-ATX Motherboard
The GIGABYTE A620M H AM5 Micro-ATX Motherboard is engineered for top-tier performance and future-proofing, compatible with the latest AMD Ryzen 7000, 8000, and 9000 series processors. With its 5+2+2 phase digital VRM solution, this motherboard ensures stable power delivery and excellent overclocking potential, making it a perfect choice for gamers and creators alike.
High-Speed Memory & Storage
Supporting dual-channel DDR5 memory with up to two SMD DIMMs, the A620M H offers seamless compatibility with AMD EXPO and Intel XMP memory modules, allowing for optimized system performance. The inclusion of a PCIe 4.0 x4 M.2 connector enables lightning-fast data access and rapid boot times when paired with the latest NVMe SSDs.
Easy Graphics Installation & Display Options
The EZ-Latch PCIe x16 slot makes installing and removing graphics cards a tool-free process, simplifying upgrades and maintenance. For display versatility, this motherboard offers both DisplayPort and HDMI outputs, supporting multi-monitor setups for enhanced productivity and entertainment.
Advanced Cooling & Energy Efficiency
Featuring Smart Fan 6 technology, the GIGABYTE A620M H provides advanced cooling with multiple temperature sensors and hybrid fan headers, supporting both PWM and DC fans. The FAN STOP feature boosts energy efficiency by automatically stopping the fans when the system reaches optimal cooling temperatures, reducing noise and power consumption.
Convenient BIOS Updates & Future-Proof Design
The Q-Flash Plus feature allows users to update the BIOS without needing a CPU, memory, or graphics card, ensuring hassle-free maintenance. Overall, the GIGABYTE A620M H motherboard delivers a reliable, high-performance platform for modern PC builds, packed with advanced features and future-ready capabilities for gaming and professional use.
What is the price of GIGABYTE A620M H AM5 Micro-ATX Motherboard in Bangladesh?
Lastly, You can buy this product from Best Computer Hub Ltd. The latest GIGABYTE A620M H AM5 Micro-ATX Motherboard in Bangladesh is 11,500৳.
Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors | |
| Chipset | AMD A620 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 2.0/1.1 port on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumperBack Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Based on 0 reviews
Be the first to review “GIGABYTE A620M H AM5 Micro-ATX Motherboard”
