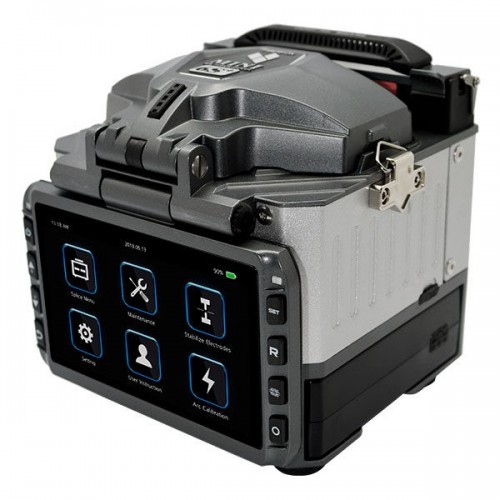

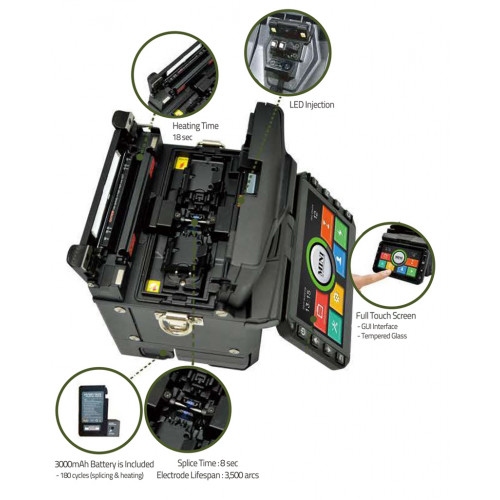

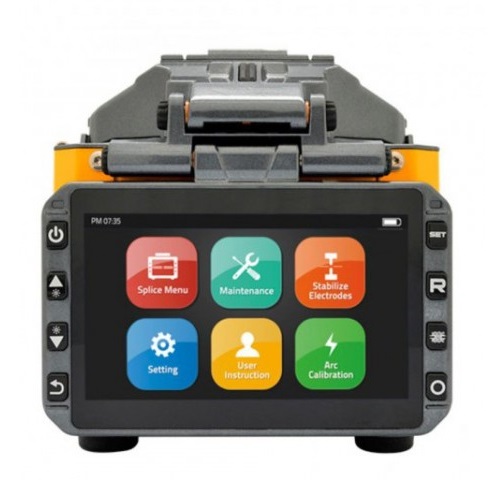

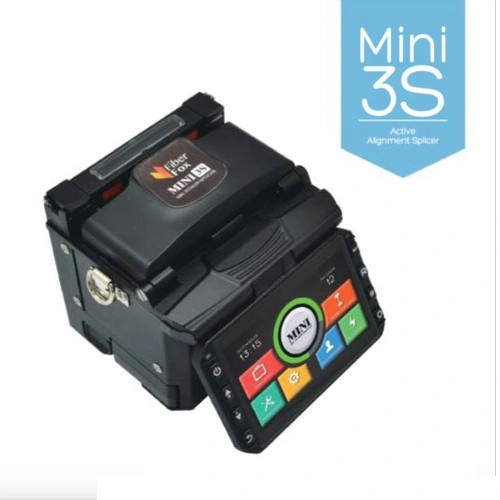

FiberFox Mini 3S Active V-Groov Clade Splicer Machine

FiberFox Mini 3S Active V-Groove Clade Splicer Machine

The FiberFox Mini 3S Active V-Groove Clade Splicer Machine is an advanced, highly efficient splicer designed for precision fiber optic work. Featuring Digitalized Active Alignment (DAA), this machine ensures minimal splicing loss and optimal performance across various fiber types.

Key Features and Specifications

• Splicing Performance:
  • Average loss: SM(0.03dB) / MM(0.02dB) / DS(0.05dB) / NZDS(0.05dB)
  • Splicing time: SM Mode: 8 seconds
  • Heating time: 18 seconds
• Splicing Modes:
  • 139 modes (Pre-set: 11 / User set-up: 128)
  • Attenuation range: 0.1 ~ 20 dB
• Compatible Fiber Types:
  • SM (ITU-T G652 & G.657)
  • MM (ITU-T G.651)
  • DS (ITU-T G.653)
  • NZDS (ITU-T G.655)
  • Coating diameter: 100 to 3,000um
• Durability and Storage:
  • Electrode lifespan: >3,500 arcs
  • Storage capacity: Up to 10,000/20,000 images
• Advanced Detection:
  • Dual CCD camera with LED emitting system
  • LED spotlight for fiber illumination
• User Interface:
  • 4.3″ color LCD monitor with tempered glass touch screen
• Power and Battery:
  • Battery: Li-ion 11.1V 3000mAh, 200 cycles (Splicing & Heating)
  • Power supply: AC 100-240V input or DC 12.6V 1.8A

What is the price of  Mini 3S Splicer Machine in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. The latest price of  Mini 3S Splicer Machine in Bangladesh is 1,43,500৳. Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.
