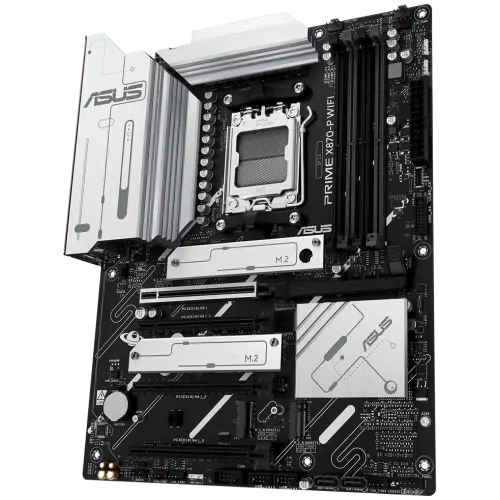

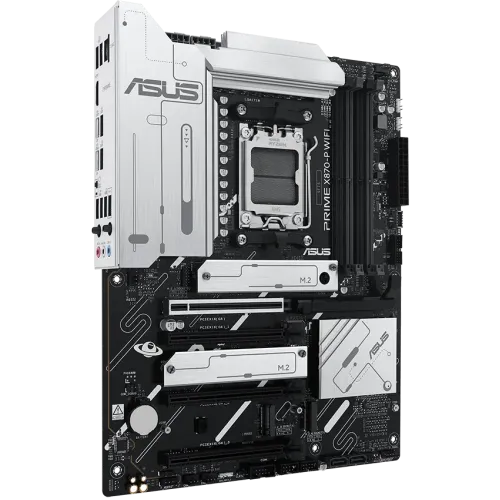

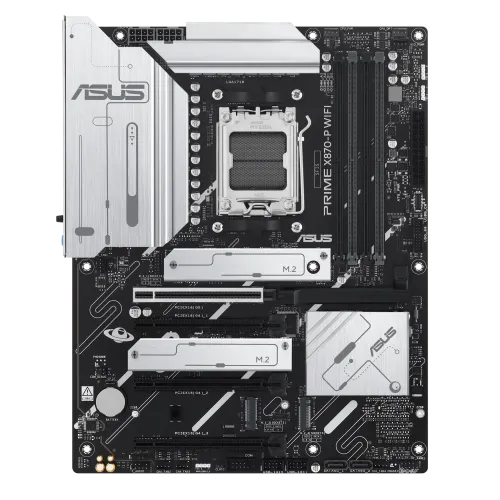

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard
Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard - Image 2
Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard - Image 3
Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard - Image 4
Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard
, , , , , ,

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard

Asus
Availability:

In stock
Add to wishlist
Compare

Short Description

  • Model: PRIME X870-P WIFI-CSM
  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 Up to 8000+(OC)
  • Graphics Output: 1 x HDMI port, 2x USB 4 (Type-C up to 40Gbps Data Transfer)
  • Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4

Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard: Unlock Advanced Performance

The Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard is a high-performance solution designed to fully harness the power of AMD Ryzen™ 9000, 8000, and 7000 series processors. Equipped with the AMD X870 chipset and AM5 socket, this motherboard supports up to 192GB of DDR5 RAM, delivering speeds exceeding 8000 MT/s (OC) for unbeatable multitasking and computing performance.

Key Features of Asus PRIME X870-P WIFI-CSM AM5 ATX Motherboard

Ideal for advanced AI applications and high-performance computing, the Asus PRIME X870-P offers extensive storage options with four M.2 slots and two SATA 6Gb/s ports, ensuring plenty of room for data storage and fast load times. Connectivity is at the forefront, featuring dual USB 40Gbps Type-C ports, WiFi 7, and PCIe 5.0 slots for ultra-fast data transfers, seamless internet connectivity, and support for the latest peripherals.

To maintain optimal performance, the motherboard includes a robust cooling system with VRM heatsinks, thermal pads, and multiple temperature sensors. For expansion, it offers one PCIe 5.0 x16 slot and three PCIe 4.0 x16 slots, providing flexibility for adding additional hardware components like graphics cards and storage drives.

The Asus PRIME X870-P also supports 4K@60Hz output through HDMI 2.1 and DisplayPort 1.4a, delivering stunning visuals for gaming, content creation, or professional tasks. Plus, with customizable Aura Sync RGB lighting, you can tailor your system’s aesthetics to match your style.

Perfect for PC enthusiasts, gamers, and DIY builders, this motherboard offers the performance, connectivity, and future-proof features required for demanding applications. Backed by a 3-year warranty, the Asus PRIME X870-P WIFI-CSM provides the stability and customization needed to build a high-performance PC for any purpose.

What is the price of  Asus PRIME X870-P WIFI-CSM Motherboard in Bangladesh?

Lastly, You can buy this product from Best Computer Hub Ltd. So, Order Online Or Visit your Nearest Best Computer Hub Shop to get yours at lowest price.

SKU: Asus-Amd-Motherboard-0022 Categories: , , , , , , Tags: , ,
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD X870 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOSc
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD X670 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
M.2 Socket AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
3 x PCIe 4.0 x16 slots (support x1 mode)***
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Maximum Memory 192GBB
Graphics
Graphics 1 x HDMI™ port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Connector & Ports
HDMI 1x HDMI 2.1
USB (s) 2 x USB4 (40Gbps) ports support USB Type-C display outputs**

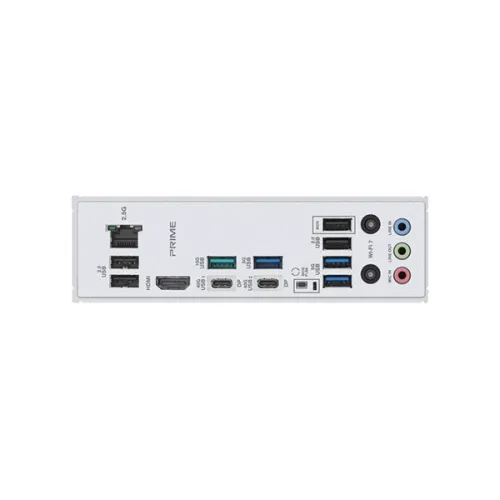

Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Wireless Communication module Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4**
Supported Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)****
2 x SATA 6Gb/s ports****
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
*** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
**** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
RAID * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage protection
– SafeSlot
– Stainless-steel back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Antenna
– Q-Dashboard
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
Aura Sync
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– ASUS MyHotkey
Warranty Information
Manufacturing Warranty 3 Years
